Bevel Gears, 1:4 Ratio, Plastic (Injection moulded)

Manufacturer	T.E.A. Transmissions Pty Ltd - Australia

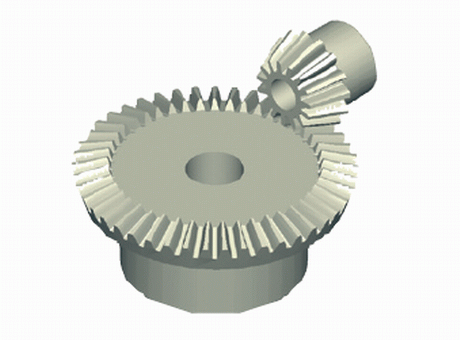

Description	Bevel Gears, straight geared of injection molded Plastic, Ratio 1:4
Reference	KH1010-1:4

CAD models

Request for quotation

Product selection

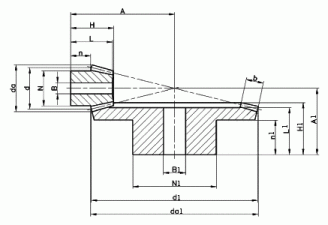

Index	Selector	Order no.	Teeth	Teeth 1	Module	i	d (mm)	d1 (mm)	da (mm)	da1 (mm)	N (mm)	N1 (mm)	n (mm)	n1 (mm)	L (mm)	L1 (mm)	H (mm)	H1 (mm)	A (mm)	A1 (mm)	b (mm)	B (mm)	B1 (mm)	Tol. B	Tol. B1	Material
1	1	KH1010-1:4	10		1	1:4	10		12		7.8		9.3		17.7		17.7		30.1		8.2	4		H7		Hostaform C
2	2	KH1040-1:4		40	1	1:4		40		40.8		23.4		10.8		15.7		17		20.1	8.2		10	H7	H7	Hostaform C
3	3	KH101040-1:4	10	40	1	1:4	10	40	12	40.8	7.8	23.4	9.3	10.8	17.7	15.7	17.7	17	30.1	20.1	8.2	4	10	H7	H7	Hostaform C
4	4	KH1510-1:4	10		1.5	1:4	15		18		11.3		10.9		23.5		23.5		41.7		12.3	5		H7		Hostaform C
5	5	KH1540-1:4		40	1.5	1:4		60		61.2		30.4		12.8		20		21.7		26.2	12.3		12	H7	H7	Hostaform C
6	6	KH151040-1:4	10	40	1.5	1:4	15	60	18	61.2	11.3	30.4	10.9	12.8	23.5	20	23.5	21.7	41.7	26.2	12.3	5	12	H7	H7	Hostaform C
7	7	KH2010-1:4	10		2	1:4	20		23.8		14.3		12.8		28.9		28.9		54		16.3	6		H7		Hostaform C
8	8	KH2040-1:4		40	2	1:4		80		81.5		36		16.6		24.7		27		32.5	16.3		18	H7	H7	Hostaform C
9	9	KH201040-1:4	10	40	2	1:4	20	80	23.8	81.5	14.3	36	12.8	16.6	28.9	24.7	28.9	27	54	32.5	16.3	6	18	H7	H7	Hostaform C
