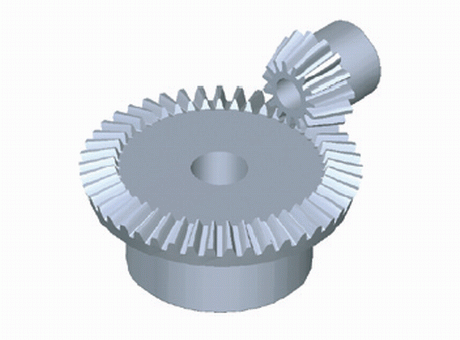

Bevel Gears, 1:2.5 Ratio

Manufacturer	T.E.A. Transmissions Pty Ltd - Australia
Description	Bevel Gears, straight geared, Ratio 1:2,5
Reference	K1250-16

CAD models

Request for quotation

Product selection

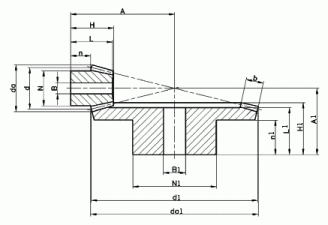

Index	Selector	Order no.	Teeth	Teeth 1	Module	i	d (mm)	d1 (mm)	da (mm)	da1 (mm)	N (mm)	N1 (mm)	n (mm)	n1 (mm)	L (mm)	L1 (mm)	H (mm)	H1 (mm)	A (mm)	A1 (mm)	b (mm)	B (mm)	B1 (mm)	Tol. B	Tol. B1	Material
1	1	K1250-16	16		1.5	1:2,5	24		26.8		20		11.3		22		22.9		42		11.3	10		H7		C45
2	2	K1250-40		40	1.5	1:2,5		60		61.1		30		16		21.1		23.1		30	11.3		15	H7	H7	34Cr4
3	3	K1250	16	40	1.5	1:2,5	24	60	26.8	61.1	20	30	11.3	16	22	21.1	22.9	23.1	42	30	11.3	10	15	H7	H7	34Cr4
4	4	K1251-16	16		2	1:2,5	32		35.7		26		12.7		27.3		28.4		54		15.1	12		H7		34Cr4
5	5	K1251-40		40	2	1:2,5		80		81.5		36		18		25.2		27.9		37	15.1		18	H7	H7	34Cr4
6	6	K1251	16	40	2	1:2,5	32	80	35.7	81.5	26	36	12.7	18	27.3	25.2	28.4	27.9	54	37	15.1	12	18	H7	H7	34Cr4
7	7	K1252-16	16		2.5	1:2,5	40		44.6		32		14.4		32.7		34.1		66		18.9	16		H7		34Cr4
8	8	K1252-40		40	2.5	1:2,5		100		101.9		44		21		30.2		33.5		45	18.9		22	H7	H7	34Cr4
9	9	K1252	16	40	2.5	1:2,5	40	100	44.6	101.9	32	44	14.4	21	32.7	30.2	34.1	33.5	66	45	18.9	16	22	H7	H7	34Cr4
10	10	K1253-16	16		3	1:2,5	48		53.6		40		16.4		38.1		39.7		78		22.6	20		H7		34Cr4
11	11	K1253-40		40	3	1:2,5		120		122.2		54		26		38.2		42.2		56	22.6		27	H7	H7	34Cr4
12	12	K1253	16	40	3	1:2,5	48	120	53.6	122.2	40	54	16.4	26	38.1	38.2	39.7	42.2	78	56	22.6	20	27	H7	H7	34Cr4
13	13	K1254-16	16		3.5	1:2,5	56		62.5		46		17		42.2		44.3		89		26.4	22		H7		34Cr4
14	14	K1254-40		40	3.5	1:2,5		140		142.6		64		33		46.3		50.9		67	26.4		32	H7	H7	34Cr4
15	15	K1254	16	40	3.5	1:2,5	56	140	62.5	142.6	46	64	17	33	42.2	46.3	44.3	50.9	89	67	26.4	22	32	H7	H7	34Cr4
16	16	K1255-16	16		4	1:2,5	64		71.4		52		19.6		47.9		50		101		30.2	26		H7		34Cr4
17	17	K1255-40		40	4	1:2,5		160		163		70		34		49.3		54.9		73	30.2		35	H7	H7	34Cr4
18	18	K1255	16	40	4	1:2,5	64	160	71.4	163	52	70	19.6	34	47.9	49.3	50	54.9	101	73	30.2	26	35	H7	H7	34Cr4
19	19	K1256-16	16		4.5	1:2,5	72		80.4		60		20.6		53.2		55.6		113		33.9	30		H7		34Cr4
20	20	K1256-40		40	4.5	1:2,5		180		183.3		80		37		54.3		60.3		81	33.9		40	H7	H7	34Cr4
21	21	K1256	16	40	4.5	1:2,5	72	180	80.4	183.3	60	80	20.6	37	53.2	54.3	55.6	60.3	113	81	33.9	30	40	H7	H7	34Cr4
22	22	K1257-16	16		5	1:2,5	80		89.3		66		21.2		57.6		60.3		124		37.7	32		H7		34Cr4
23	23	K1257-40		40	5	1:2,5		200		203.7		89		40		60.3		67		90	37.7		45	H7	H7	34Cr4
24	24	K1257	16	40	5	1:2,5	80	200	89.3	203.7	66	89	21.2	40	57.6	60.3	60.3	67	124	90	37.7	32	45	H7	H7	34Cr4
