Bevel Gears, 1:2 Ratio

Manufacturer	T.E.A. Transmissions Pty Ltd - Australia

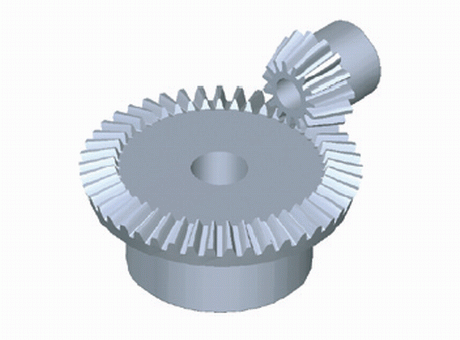

Description	Bevel Gears, straight geared, Ratio 1:2
Reference	K1200-15

CAD models

Request for quotation

Product selection

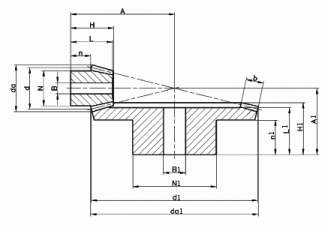

Index	Selector	Order no.	Teeth	Teeth 1	Module	i	d (mm)	d1 (mm)	da (mm)	da1 (mm)	N (mm)	N1 (mm)	n (mm)	n1 (mm)	L (mm)	L1 (mm)	H (mm)	H1 (mm)	A (mm)	A1 (mm)	b (mm)	B (mm)	B1 (mm)	Tol. B	Tol. B1	Material
1	1	K1200-15	15		1.5	1:2	22.5		25.2		18		10.4		18.8		19.8		34		8.8	8		H7		C45
2	2	K1200-30		30	1.5	1:2		45		46.3		24		12		17.6		19.6		26	8.8		11	H7	H7	34Cr4
3	3	K1200	15	30	1.5	1:2	22.5	45	25.2	46.3	18	24	10.4	12	18.8	17.6	19.8	19.6	34	26	8.8	8	11	H7	H7	34Cr4
4	4	K1201-15	15		2	1:2	30		33.6		22		10		21.6		23.1		42		11.7	11		H7		34Cr4
5	5	K1201-30		30	2	1:2		60		61.8		28		12.4		19.6		22.4		31	11.7		14	H7	H7	34Cr4
6	6	K1201	15	30	2	1:2	30	60	33.6	61.8	22	28	10	12.4	21.6	19.6	23.1	22.4	42	31	11.7	11	14	H7	H7	34Cr4
7	7	K1202-15	15		2.5	1:2	37.5		41.9		28		11.2		25.5		27.3		51		14.7	14		H7		34Cr4
8	8	K1202-30		30	2.5	1:2		75		77.2		36		15.8		24.8		28.3		39	14.7		18	H7	H7	34Cr4
9	9	K1202	15	30	2.5	1:2	37.5	75	41.9	77.2	28	36	11.2	15.8	25.5	24.8	27.3	28.3	51	39	14.7	14	18	H7	H7	34Cr4
10	10	K1203-15	15		3	1:2	45		50.4		34		13.2		30.5		32.6		61		17.6	17		H7		34Cr4
11	11	K1203-30		30	3	1:2		90		92.7		44		20.1		30.9		35.1		48	17.6		22	H7	H7	34Cr4
12	12	K1203	15	30	3	1:2	45	90	50.4	92.7	34	44	13.2	20.1	30.5	30.9	32.6	35.1	61	48	17.6	17	22	H7	H7	34Cr4
13	13	K1204-15	15		3.5	1:2	52.5		58.8		40		14.4		34.4		36.9		70		20.5	20		H7		34Cr4
14	14	K1204-30		30	3.5	1:2		105		108.1		50		22.5		35.1		40		55	20.5		25	H7	H7	34Cr4
15	15	K1204	15	30	3.5	1:2	52.5	105	58.8	108.1	40	50	14.4	22.5	34.4	35.1	36.9	40	70	55	20.5	20	25	H7	H7	34Cr4
16	16	K1205-15	15		4	1:2	60		67.1		46		15.5		38.4		41.2		79		23.5	23		H7		34Cr4
17	17	K1205-30		30	4	1:2		120		123.6		60		27.8		42.2		47.8		65	23.5		30	H7	H7	34Cr4
18	18	K1205	15	30	4	1:2	60	120	67.1	123.6	46	60	15.5	27.8	38.4	42.2	41.2	47.8	79	65	23.5	23	30	H7	H7	34Cr4
19	19	K1206-15	15		4.5	1:2	67.5		75.5		52		16.7		42.2		45.4		88		26.4	26		H7		34Cr4
20	20	K1206-30		30	4.5	1:2		135		139		68		31.1		47.4		53.7		73	26.4		34	H7	H7	34Cr4
21	21	K1206	15	30	4.5	1:2	67.5	135	75.5	139	52	68	16.7	31.1	42.2	47.4	45.4	53.7	88	73	26.4	26	34	H7	H7	34Cr4
22	22	K1207-15	15		5	1:2	75		83.9		58		17.8		46.2		49.7		97		29.3	29		H7		34Cr4
23	23	K1207-30		30	5	1:2		150		154.7		74		33.5		51.5		58.5		80	29.3		37	H7	H7	34Cr4
24	24	K1207	15	30	5	1:2	75	150	83.9	154.7	58	74	17.8	33.5	46.2	51.5	49.7	58.5	97	80	29.3	29	37	H7	H7	34Cr4
