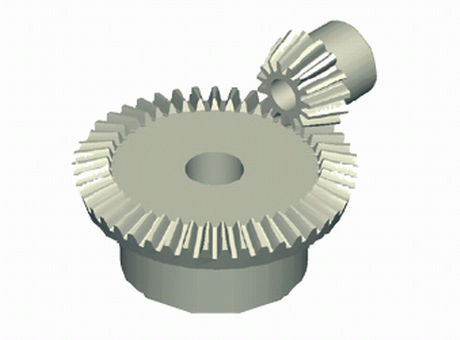

Bevel Gears, 1:2 Ratio, Plastic (Injection moulded)

Manufacturer	T.E.A. Transmissions Pty Ltd - Australia
Description	Bevel Gears, straight geared of injection molded Plastic, Ratio 1:2
Reference	KH1015-1:2

CAD models

Request for quotation

Product selection

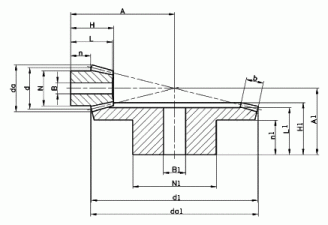

Index	Selector	Order no.	Teeth	Teeth 1	Module	i	d (mm)	d1 (mm)	da (mm)	da1 (mm)	N (mm)	N1 (mm)	n (mm)	n1 (mm)	L (mm)	L1 (mm)	H (mm)	H1 (mm)	A (mm)	A1 (mm)	b (mm)	B (mm)	B1 (mm)	Tol. B	Tol. B1	Material
1	1	KH1015-1:2	15		1	1:2	15		16.8		12.2		10.6		17		17		26.4		6.6	5		H7		Hostaform C
2	2	KH1030-1:2		30	1	1:2		30		31.1		18		9.1		14.8		16.2		20.9	6.6		8	H7	H7	Hostaform C
3	3	KH101530-1:2	15	30	1	1:2	15	30	16.8	31.1	12.2	18	10.6	9.1	17	14.8	17	16.2	26.4	20.9	6.6	5	8	H7	H7	Hostaform C
4	4	KH1515-1:2	15		1.5	1:2	22.5		25.4		17		11.5		22.8		22.8		35.8		10.5	8		H7		Hostaform C
5	5	KH1530-1:2		30	1.5	1:2		45		46.4		23.4		9.6		17.5		19.5		26.2	10.5		10	H7	H7	Hostaform C
6	6	KH151530-1:2	15	30	1.5	1:2	22.5	45	25.4	46.4	17	23.4	11.5	9.6	22.8	17.5	22.8	19.5	35.8	26.2	10.5	8	10	H7	H7	Hostaform C
7	7	KH2015-1:2	15		2	1:2	30		33.6		22.5		11.8		26		27		44.2		14.6	10		H7		Hostaform C
8	8	KH2030-1:2		30	2	1:2		60		62.2		30.2		11.8		22.6		24.2		32.6	14.6		12	H7	H7	Hostaform C
9	9	KH201530-1:2	15	30	2	1:2	30	60	33.6	62.2	22.5	30.2	11.8	11.8	26	22.6	27	24.2	44.2	32.6	14.6	10	12	H7	H7	Hostaform C
10	10	KH2515-1:2	15		2.5	1:2	37.5		42		26.5		13		29.6		31.2		53.3		17.3	12		H7		Hostaform C
11	11	KH2530-1:2		30	2.5	1:2		75		77.3		36.1		15		27.5		29.5		40.5	17.3		16	H7	H7	Hostaform C
12	12	KH251530-1:2	15	30	2.5	1:2	37.5	75	42	77.3	26.5	36.1	13	15	29.6	27.5	31.2	29.5	53.3	40.5	17.3	12	16	H7	H7	Hostaform C
13	13	KH3015-1:2	15		3	1:2	45		50.3		31.2		14.8		35		36.3		63.3		20.5	14		H7		Hostaform C
14	14	KH3030-1:2		30	3	1:2		90		93		45		19		34.2		37		49.5	20.5		18	H7	H7	Hostaform C
15	15	KH301530-1:2	15	30	3	1:2	45	90	50.3	93	31.2	45	14.8	19	35	34.2	36.3	37	63.3	49.5	20.5	14	18	H7	H7	Hostaform C
