Bellow coupling with clamping hub, with stainless steel bellow, type BK

Manufacturer	T.E.A. Transmissions Pty Ltd - Australia

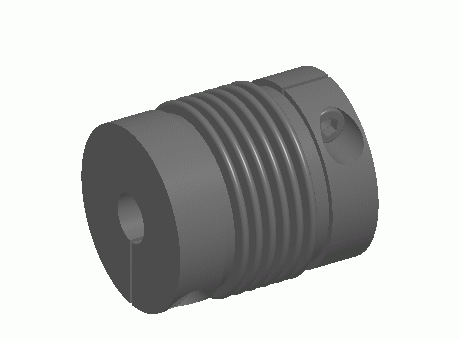

Description	Bellow coupling with clamping flange, with stainless steel bellow, type BK
Reference	BK15 11 11

CAD models

Request for quotation

Product selection

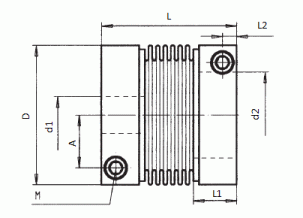

Index	Selector	Order no.	D (mm)	L	L1 (mm)	L2 (mm)	A (mm)	d1 min (mm)	d1 max (mm)	d2 min (mm)	d2 min (mm)	M	Max. Torque (N.m)	Weight (kg)
1	1	BK15	56	72	23	7.5	19	11	30	11	30	M6	15	0.3
2	2	BK40	66	80	24	8.5	22	14	34	14	34	M8	40	0.5
3	3	BK60	66	81	24	8.5	22	18	34	18	34	M8	60	0.5
4	4	BK100	82	94	28	10.5	28.5	17	43	17	43	M10	100	0.8
5	5	BK150	82	95	28	10.5	28.5	22	43	22	43	M10	150	0.8
6	6	BK200	101	109	35	12	35	27	54	27	54	M12	200	1.4
7	7	BK350	122	118	38	12.5	46	32	75	32	75	M12	350	1.5
8	8	BK500	122	119	38	12.5	46	38	75	38	75	M12	500	2.1

Diameter d1 (mm)

Diameter d2 (mm)
