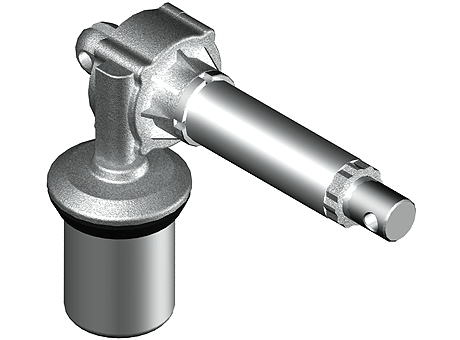

Actuator HG/AL3, max. Lifting Force 5000 N, max. Stroke 995 mm

Manufacturer	T.E.A. Transmissions Pty Ltd - Australia
Description	Actuator HG/AL3, axial moved Piston Rod, max. Lifting Force 5000 N, max. Stroke 995 mm
Reference	HG/AL3/0100/M01/DC-V24-5000/M0/0/0/0/0/0/0/P0/A0

CAD models

Request for quotation

Product selection

Model

Index	Selector	Motor	Force (N)	Speed (mm/s)	Model	Motor Type	Type	Engine Power (kW)	Motor speed (rpm)	Reduction	Thread	Pitch	Efficiency rate	Max. stroke (mm)

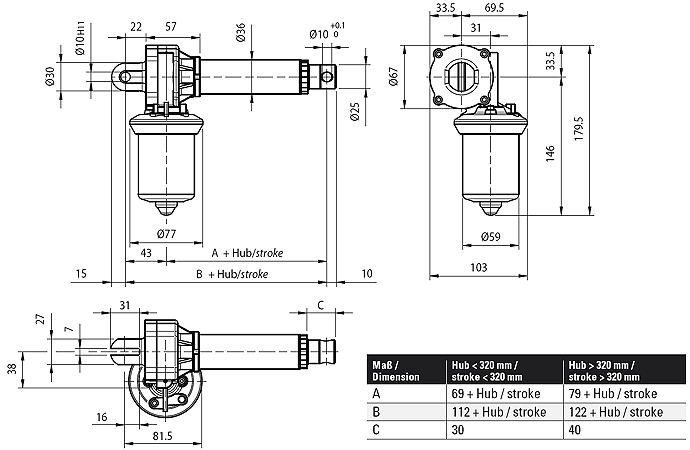

1	6	HG/AL3 (24 VDC)	3000	35	M01	DC	59	-	5000	52 : 2	16	12	0.37	560
2	7	HG/AL3 (24 VDC)	3000	25	M02	DC	59	-	5000	52 : 2	16	8	0.27	560
3	8	HG/AL3 (24 VDC)	5000	14	M03	DC	59	-	5000	52 : 2	16	4	0.23	435
4	9	HG/AL3 (24 VDC)	5000	9	M04	DC	59	-	5000	69 : 1	16	8	0.26	435
5	10	HG/AL3 (24 VDC)	5000	5	M05	DC	59	-	5000	69 : 1	16	4	0.22	435
6	16	HG/AL3 (12 VDC)	3000	35	M01	DC	59	-	4000	52 : 2	16	12	0.37	560
7	17	HG/AL3 (12 VDC)	3000	25	M02	DC	59	-	4000	52 : 2	16	8	0.27	560
8	18	HG/AL3 (12 VDC)	5000	14	M03	DC	59	-	4000	52 : 2	16	4	0.23	435
9	19	HG/AL3 (12 VDC)	5000	9	M04	DC	59	-	4000	69 : 1	16	8	0.26	435
10	20	HG/AL3 (12 VDC)	5000	5	M05	DC	59	-	4000	69 : 1	16	4	0.22	435
11	26	HG/AL3 (36 VDC)	3000	35	M01	DC	59	-	5000	52 : 2	16	12	0.37	560
12	27	HG/AL3 (36 VDC)	3000	25	M02	DC	59	-	5000	52 : 2	16	8	0.27	560
13	28	HG/AL3 (36 VDC)	5000	14	M03	DC	59	-	5000	52 : 2	16	4	0.23	435
14	29	HG/AL3 (36 VDC)	5000	9	M04	DC	59	-	5000	69 : 1	16	8	0.26	435
15	30	HG/AL3 (36 VDC)	5000	5	M05	DC	59	-	5000	69 : 1	16	4	0.22	435

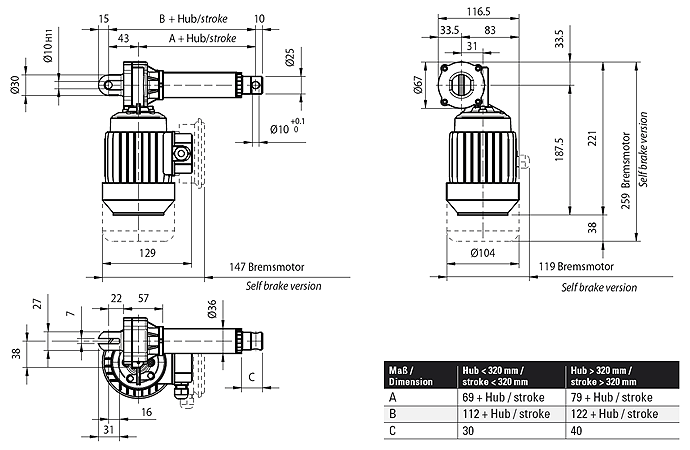

16	48	HG/AL3 3-phase-Motor (400 VAC)	2000	20	M01	AC	IEC50	0,09	2800	52 : 2	16	12	0.37	690
17	49	HG/AL3 3-phase-Motor (400 VAC)	2200	14	M02	AC	IEC50	0,09	2800	52 : 2	16	8	0.27	655
18	50	HG/AL3 3-phase-Motor (400 VAC)	3500	7	M03	AC	IEC50	0,09	2800	52 : 2	16	4	0.23	520
19	51	HG/AL3 3-phase-Motor (400 VAC)	5000	5	M04	AC	IEC50	0,09	2800	69 : 1	16	8	0.26	435
20	52	HG/AL3 3-phase-Motor (400 VAC)	5000	2.5	M05	AC	IEC50	0,09	2800	69 : 1	16	4	0.22	435
21	58	HG/AL3 1-phase-Motor (230 VAC)	900	20	M06	AC	IEC50	0,09	2800	52 : 2	16	12	0.37	995
22	59	HG/AL3 1-phase-Motor (230 VAC)	1000	14	M07	AC	IEC50	0,09	2800	52 : 2	16	8	0.27	975
23	60	HG/AL3 1-phase-Motor (230 VAC)	1800	7	M08	AC	IEC50	0,09	2800	52 : 2	16	4	0.23	725
24	61	HG/AL3 1-phase-Motor (230 VAC)	2500	5	M09	AC	IEC50	0,09	2800	69 : 1	16	8	0.26	615
25	62	HG/AL3 1-phase-Motor (230 VAC)	4500	2.5	M10	AC	IEC50	0,09	2800	69 : 1	16	4	0.22	460

Motor Position

Position of Terminal Box

Potentiometer

Brake Motor

Antirotation Device

Rear end

Front end

Encoder

No of limit switches

Limit Switch Positions

without

Stroke (mm)

Piston Rod extended (mm)

Position FCE / FCM left (mm)

Position FCE / FCM right (mm)
