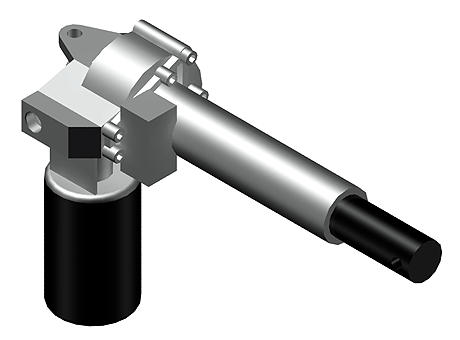

Actuator HG 200 S, max Lifting Force 4000 N

Manufacturer	T.E.A. Transmissions Pty Ltd - Australia
Description	Actuator HG 200 S, axial moved Piston Rod, max. Lifting Force 4000 N
Reference	HG 200 S
Note	Spindel: TR 16 x 2

CAD models

Product selection

Index	Selector	Order no.	Spindle	Lifting Force Push-Pull (N)	Lifting Speed (mm/s)
1	1	HG 200 S	TR 16 x 2	4000	11
2	2	HG 200 S	TR 16 x 4	2000	22
3	3	HG 200 S	TR 16 x 8	1000	44

Stroke (mm)

Spindle position (mm)
