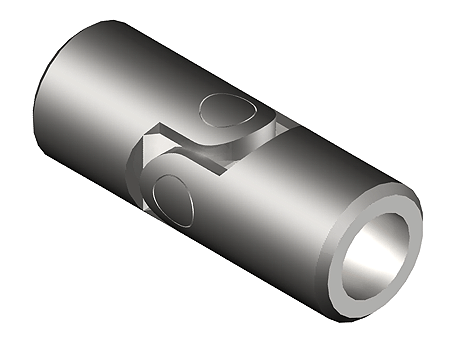

Universal Joint (Single), Stainless Steel, Friction bearings, Heavy Duty, Series X, DIN808-G

Manufacturer	T.E.A. TECHNIK s.r.o. - Czech Republic
Description	Single universal joint with slide bearings, reinforced construction, stainless steel, series X, DIN 808-G
Reference	01X

CAD models

Request for quotation

Product selection

Index	Selector	Order no.	d (mm)	D (mm)	L2 (mm)	L1 (mm)	C (mm)	L4 (mm)	a (mm)	b (mm)	Q (mm)	SW (mm)	Weight (kg)
1	1	01X	6	16	34	17	8	22	2	7	6	6	0.05
2	2	02X	8	16	40	20	11	22	2	9	8	8	0.05
3	3	03X	10	22	48	24	12	26	3	11.4	10	10	0.1
4	4	04X	12	25	56	28	13	30	4	13.8	12	12	0.16
5	5	1X	16	32	68	34	16	36	5	18.3	16	16	0.3
6	6	3X	20	42	82	41	18	46	6	22.8	20	20	0.6
7	7	5X	25	50	108	54	26	55	8	28.3	25	25	1.2
8	8	6X	30	58	122	61	29	68	8	33.3	30	30	1.85

Version left

Version right
