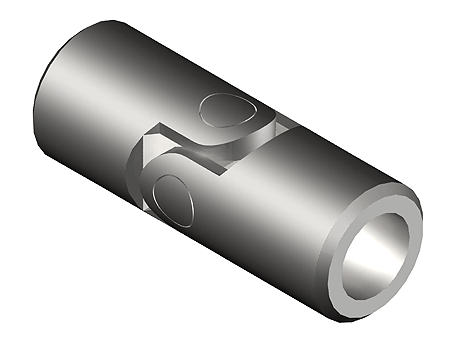

Universal Joint (Single), Needle bearings, Heavy Duty, Series H, DIN808, Maintenance free

Manufacturer	T.E.A. TECHNIK s.r.o. - Czech Republic
Description	Single universal joint with needle bearings, reinforced construction, maintenance free, series H, DIN 808-W
Reference	03H

CAD models

Request for quotation

Product selection

Index	Selector	Order no.	d (mm)	D (mm)	L2 (mm)	L1 (mm)	C (mm)	a (mm)	b (mm)	Q (mm)	SW (mm)	Weight (kg)
1	1	03H	10	22	48	24	12	3	11.4	10	10	0.1
2	2	04H	12	25	56	28	13	4	13.8	12	12	0.16
3	3	05H	14	28	60	30	14	5	16.3	14	14	0.2
4	4	1H	16	32	68	34	16	5	18.3	16	16	0.3
5	5	2H	18	36	74	37	17	6	20.8	18	18	0.45
6	6	3H	20	42	82	41	18	6	22.8	20	20	0.6
7	7	4H	22	45	95	47.5	22	6	24.8	22	22	0.95
8	8	5H	25	50	108	54	26	8	28.3	25	25	1.2
9	9	6H	30	58	122	61	29	8	33.3	30	30	1.85
10	10	6H1	32	58	130	65	33	10	35.3	30	30	2
11	11	7H	35	70	140	70	35	10	38.3	-	-	3.15
12	12	8H	40	80	160	80	39	12	43.3	-	-	4.6
13	13	9H	50	95	190	95	46	14	53.8	-	-	7.6

Version left

Version right

Contact the supplier
