Universal Joint (Double), Plain bearings, Heavy Duty, DIN808-G

Manufacturer	T.E.A. TECHNIK s.r.o. - Czech Republic

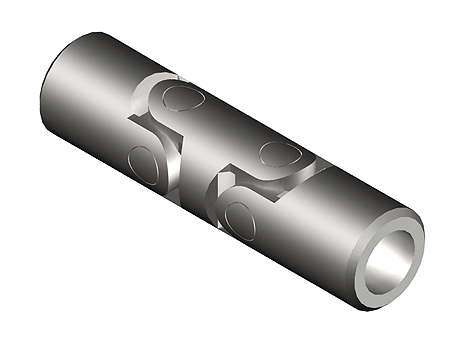

Description	Double universal joint with slide bearings, DIN 808-G [reinforced construction]
Reference	221

CAD models

Product selection

Index	Selector	Order no.	D1 H7 (mm)	D2 (mm)	L1 -1 (mm)	L2 ±1 (mm)	L4 ±0,5 (mm)	B P9 (mm)	T +0,2 (mm)	S	Weight (kg)
1	1	221	6	16	9	56	17	2	7	6	0.057
2	2	221 SS	6	16	9	56	17	2	7	6	0.057
3	3	222	8	16	10	62	20	2	9	8	0.06
4	4	222 SS	8	16	10	62	20	2	9	8	0.06
5	5	223	10	20	13	74	24	3	11.4	10	0.115
6	6	223 SS	10	20	13	74	24	3	11.4	10	0.115
7	7	224	12	25	15	86	28	4	13.8	10	0.212
8	8	224 SS	12	25	15	86	28	4	13.8	10	0.212
9	9	225	16	32	16	104	34	5	18.3	14	0.42
10	10	225 SS	16	32	16	104	34	5	18.3	14	0.42
11	11	226	20	40	20	128	41	6	22.8	19	0.8
12	12	226 SS	20	40	20	128	41	6	22.8	19	0.8
13	13	227	25	50	25	160	52.5	8	28.3	24	1.65
14	14	227 SS	25	50	25	160	52.5	8	28.3	24	1.65
15	15	228	32	63	30	200	65	10	35.3	30	3.28
16	16	228 SS	32	63	30	200	65	10	35.3	30	3.28
17	17	229	40	75	43	245	80	12	43.3	36	5.28
18	18	229 SS	40	75	43	245	80	12	43.3	36	5.28
19	19	2210	50	90	52	290	95	14	53.8	-	9.4
20	20	2210 SS	50	90	52	290	95	14	53.8	-	9.4

Version left

Version right
