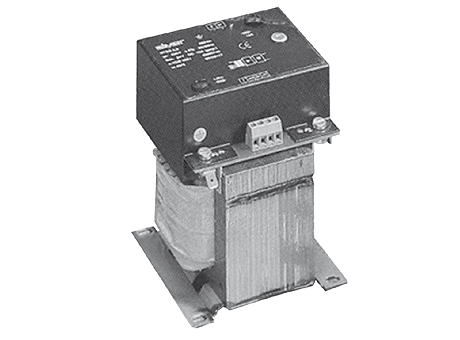

Transformer with Rectifier

Manufacturer	T.E.A. TECHNIK s.r.o. - Czech Republic
Description	Transformer with Retifier
Reference	NTEG50

CAD models

Request for quotation

Product selection

Index	Selector	Order no.	Input Voltage	Power (W)	Output Voltage	Output Current (A)	Efficiency rate	Voltage drop	Ripple	Weight (kg)	opper Weight (kg)	Size (WxHxD)	Protection Type
1	1	NTEG50	230 V ±5% 50/60 Hz	50	24 VDC, planed	2	85 %	ca. 12 %	< 5 %	1.3	0.32	77x103x66 mm	IP 00
2	2	NTEG70	230 V ±5% 50/60 Hz	70	24 VDC, planed	3	87 %	ca. 11 %	< 5 %	1.53	0.44	64x120x84 mm	IP 00
3	3	NTEG100	230 V ±5% 50/60 Hz	100	24 VDC, planed	4	88 %	ca. 10 %	< 5 %	2.33	0.65	76x120x84 mm	IP 00
4	4	NTEG130	230 V ±5% 50/60 Hz	130	24 VDC, planed	5	89 %	ca. 9 %	< 5 %	3.18	1.16	76x133x96 mm	IP 00
5	5	NTEG160	230 V ±5% 50/60 Hz	160	24 VDC, planed	6	91 %	ca. 9 %	< 5 %	3.63	1.34	106x130x96 mm	IP 00
6	6	NTEG200	230 V ±5% 50/60 Hz	200	24 VDC, planed	10	92 %	ca. 8 %	< 5 %	4.52	1.51	106x130x96 mm	IP 00
7	7	NTEG300	230 V ±5% 50/60 Hz	300	24 VDC, planed	12	92 %	ca. 6 %	< 5 %	4.85	1.72	104x110x175 mm	IP 00
8	8	NTEG400-48	230 V ±5% 50/60 Hz	500	48 VDC planed	10	90 %	ca. 6 %	< 5 %	5.76	1.93	123x120x175 mm	IP 00
