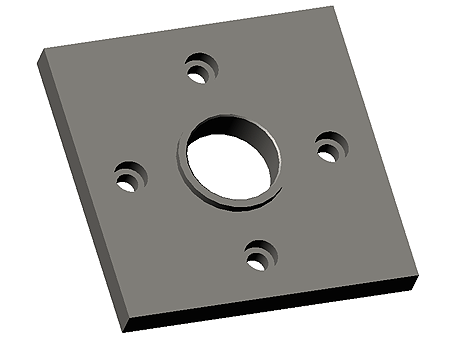

Square Flange

Manufacturer	T.E.A. TECHNIK s.r.o. - Czech Republic
Description	Square Flange
Reference	FQ1

CAD models

Product selection

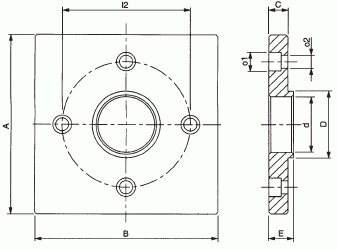

Index	Selector	Order no.	A (mm)	B (mm)	C (mm)	D (mm)	d (mm)	E (mm)	l2 (mm)	o1 (mm)	o2 (mm)
1	1	FQ1	98	98	10	36	30	13	68	11	7
2	2	FQ2	130	130	17	44	36	20	90	14	9
