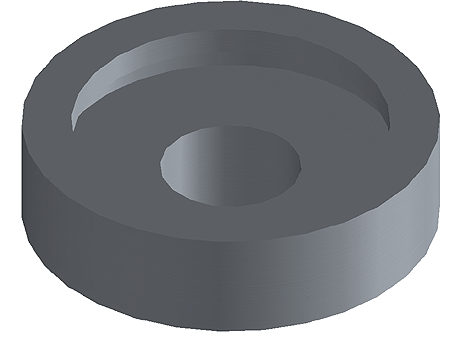

Sealing Ring for Angle Joint

Manufacturer	T.E.A. TECHNIK s.r.o. - Czech Republic
Description	Sealing Ring for universal Jount
Reference	DR8

CAD models

Request for quotation

Product selection

Index	Selector	Order no.	Size	D1 (mm)	D2 (mm)	D3 (mm)	D4 (mm)	L1 (mm)	L2 (mm)
1	1	DR8	8	4	5.4	9	11.8	4.6	1.5
2	2	DR10	10	5.5	6.9	10.5	13.4	6.6	3.5
3	3	DR13	13	7	8.6	14	17.5	7.6	3.5
4	4	DR16	16	9	10.5	17.5	22	8.6	4.5
5	5	DR19	19	11	12.6	21	25.5	12.7	7
