RSW single flange nut

Manufacturer	T.E.A. TECHNIK s.r.o. - Czech Republic
Description	RSW single flange nut
Reference	KM0825-RSW-N-P0
Note	KS0.8x2.5-47-P0

CAD models

Request for quotation

Product selection

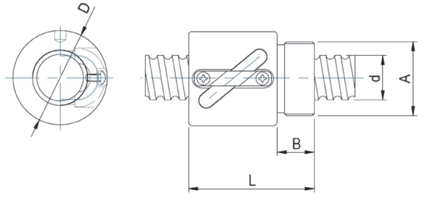

Index	Selector	Order no.	Thread dimensions	d (mm)	l (mm)	Da (mm)	D (mm)	A	B (mm)	L (mm)	Ca (Kgf)	Coa (Kgf)	(Circuit x Row)
1	1	KM0825-RSW	0.8x2.5	8	2.5	1.2	17.5	M15X1P	7.5	23.5	151	232	2.5x1
2	2	KM1003-RSW	1003	10	3	1.8	21	M18X1P	9	29	235	357	2.5x1
3	3	KM1204-RSW	1204	12	4	2.381	25.5	M20X1P	10	34	425	738	3.5x1
4	4	KM1205-RSW	1205	12	5	2	25.5	M20X1P	10	39	662	1036	3.5x1
5	5	KM1605-RSW	1605	16	5	3.175	32.5	M26X1.5P	12	42	716	1230	2.5x1

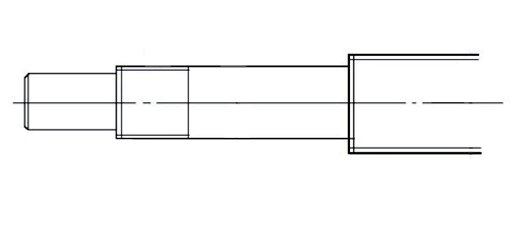

Flattening

Flattening on one side

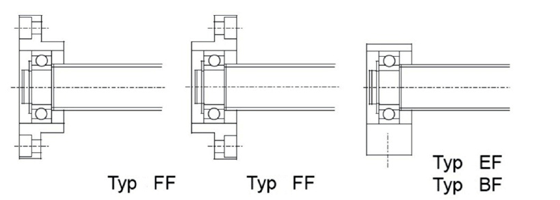

Left Spindle End

Right Spindle End

Index	Selector	Left Bearing Unit	Spindle d (mm)	A (mm)	E (mm)	B (mm)	F (mm)	G (mm)	M	S (mm)
1	1	keine

Index	Selector	Right Bearing Unit	Spindle d (mm)	A (mm)	E (mm)	B (mm)	F (mm)	G (mm)	M	S (mm)
1	1	keine

Spindel Length (mm)
