Rack, Modules 0.5 to 6, SS, 20° PA

Manufacturer	T.E.A. TECHNIK s.r.o. - Czech Republic

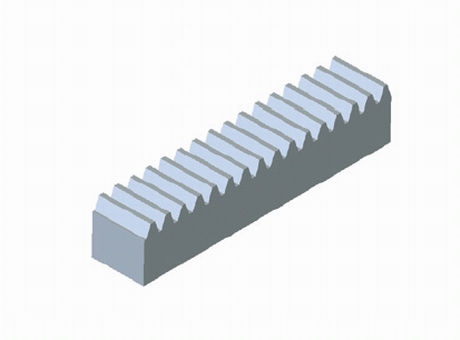

Description	Gear Rack, straight geared, Stainless steel, angle of pressure 20°, Module 0,5 - 6,0
Reference	101000 SS

CAD models

Request for quotation

Product selection

Level of detail

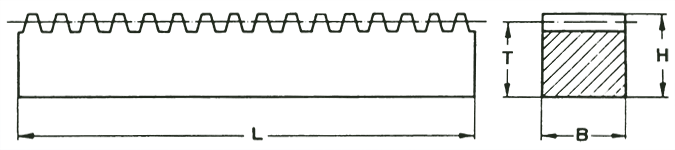

Index	Selector	Order no.	Module (mm)	L (mm)	B (mm)	T (mm)	H (mm)	Material
1	1	101000 SS	1	1000	8	7	8	1.4305
2	2	151000 SS	1.5	1000	12	10.5	12	1.4305
3	3	201000 SS	2	1000	16	14	16	1.4305
4	4	251000 SS	2.5	1000	20	17.5	20	1.4305
5	5	301000 SS	3	1000	24	21	24	1.4305
6	6	401000 SS	4	1000	30	26	30	1.4305
7	7	501000 SS	5	1000	40	35	40	1.4305
