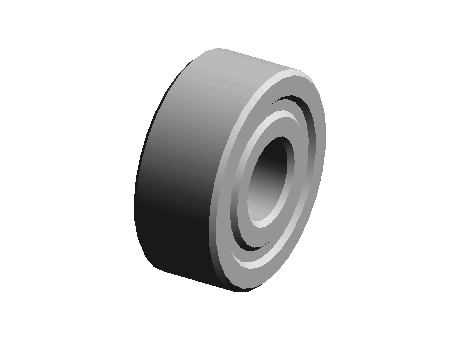

model UK

Manufacturer	T.E.A. TECHNIK s.r.o. - Czech Republic
Description	model UK
Part number	UK 8 ZZ

CAD models

Request for quotation

Product selection

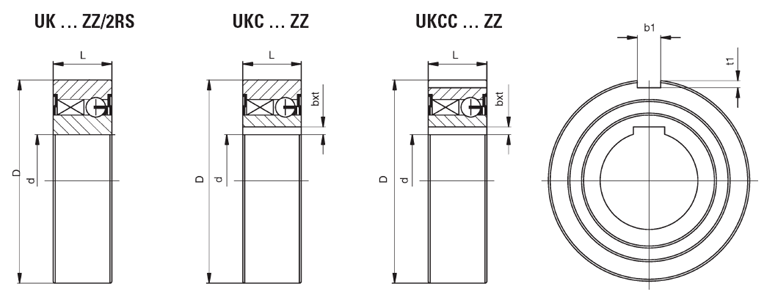

Index	Selector	order number	dH7 (mm)	Dh5 (mm)	L (mm)	b (mm)	t (mm)	b1 (mm)	t1 (mm)	weight (kg)	nmax (rpm)	load capacity 1	load capacity 2	type of bearing	TN (N.m)	no load torque (N.m)
1	1	UK 8 ZZ	8-0,01	22	9	-	-	-	-	0.02	15000	3300	860	-	2.5	0.005
2	2	UK 12 ZZ	12-0,01	32	10	-	-	-	-	0.04	10000	6100	2770	6201 ZZ	9.3	0.007
3	3	UK 15 ZZ	15-0,01	35	11	-	-	-	-	0.06	8400	7400	3400	6202 ZZ	16.9	0.009
4	4	UK 17 ZZ	17-0,01	40	12	-	-	-	-	0.07	7350	7900	3800	6203 ZZ	30.6	0.011
5	5	UK 20 ZZ	20-0,01	47	14	-	-	-	-	0.11	6000	9400	4450	6204 ZZ	50	0.013
6	6	UK 25 ZZ	25-0,01	52	15	-	-	-	-	0.14	5200	10700	5450	6205 ZZ	85	0.02
7	7	UK 30 ZZ	30-0,01	62	16	-	-	-	-	0.21	4200	11700	6450	6206 ZZ	138	0.044
8	8	UK 35 ZZ	35-0,01	72	17	-	-	-	-	0.3	3600	12600	7250	6207 ZZ	175	0.058
9	9	UK 40 ZZ	40-0,01	80	22	-	-	-	-	0.5	3000	15540	12250	-	325	0.07
10	10	UKC 12 ZZ	12H7	32	10	4	1,3	-	-	0.04	10000	6100	2770	6201 ZZ	9.3	0.007
11	11	UKC 15 ZZ	15H7	35	11	5	1,2	-	-	0.06	8400	7400	3400	6202 ZZ	16.9	0.009
12	12	UKC 17 ZZ	17H7	40	12	5	1,2	-	-	0.07	7350	7900	3800	6203 ZZ	30.6	0.011
13	13	UKC 20 ZZ	20H7	47	14	6	1,6	-	-	0.11	6000	9400	4450	6204 ZZ	50	0.013
14	14	UKC 25 ZZ	25H7	52	15	8	2,0	-	-	0.14	5200	10700	5450	6205 ZZ	85	0.02
15	15	UKC 30 ZZ	30H7	62	16	8	2,0	-	-	0.21	4200	11700	6450	6206 ZZ	138	0.044
16	16	UKC 35 ZZ	35H7	72	17	10	2,4	-	-	0.3	3600	12600	7250	6207 ZZ	175	0.058
17	17	UKC 40 ZZ	40H7	80	22	12	3,3	-	-	0.5	3000	15540	12250	-	325	0.07
18	18	UKCC 17 ZZ	17H7	40	12	5	1,2	2	1	0.07	7350	7900	3800	6203 ZZ	30.6	0.011
19	19	UKCC 20 ZZ	20H7	47	14	6	1,6	3	1,5	0.11	6000	9400	4450	6204 ZZ	50	0.013
20	20	UKCC 25 ZZ	25H7	52	15	8	2,0	6	2	0.14	5200	10700	5450	6205 ZZ	85	0.02
21	21	UKCC 30 ZZ	30H7	62	16	8	2,0	6	2	0.21	4200	11700	6450	6206 ZZ	138	0.044
22	22	UKCC 35 ZZ	35H7	72	17	10	2,4	8	2,5	0.3	3600	12600	7250	6207 ZZ	175	0.058
23	23	UKCC 40 ZZ	40H7	80	22	12	3,3	10	3	0.5	3000	15540	12250	-	325	0.07
24	24	UK 20 2RS	20-0,01	47	19	-	-	-	-	0.15	6000	9400	4450	-	50	0.06
25	25	UK 25 2RS	25-0,01	52	20	-	-	-	-	0.18	5200	10700	5450	-	85	0.06
26	26	UK 30 2RS	30-0,01	62	21	-	-	-	-	0.27	4200	11700	6450	-	138	0.075
