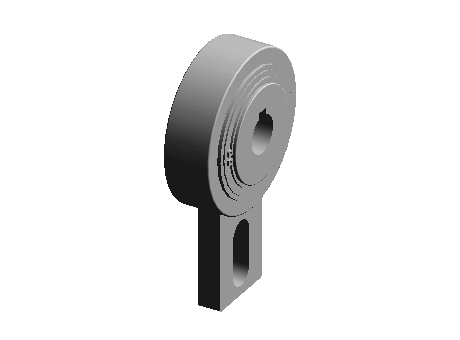

model GV

Manufacturer	T.E.A. TECHNIK s.r.o. - Czech Republic
Description	model GV
Part number	GV 20

CAD models

Request for quotation

Product selection

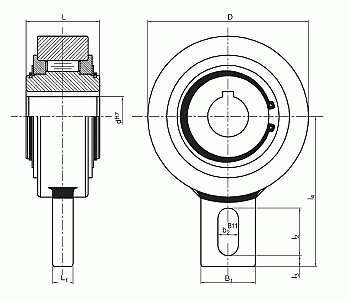

Index	Selector	order number	dH7 (mm)	D (mm)	L (mm)	B1 (mm)	L1 (mm)	b2 (mm)	l2 (mm)	l3 (mm)	l4 (mm)	weight (kg)	speed inner ring (rpm)	TN (N.m)	no load torque (N.m)
1	1	GV 20	20	83	35	40	12	15	35	5	90	1.3	450	275	0.2
2	2	GV 25	25	83	35	40	12	15	35	5	90	1.3	450	275	0.2
3	3	GV 30	30	118	54	40	15	15	35	8	110	3.5	320	1250	1.2
4	4	GV 35	35	118	54	40	15	15	35	8	110	3.4	320	1250	1.2
5	5	GV 40	40	118	54	40	15	15	35	8	110	3.3	320	1250	1.2
6	6	GV 45	45	155	54	80	15	18	35	10	140	5.8	300	2180	2.2
7	7	GV 50	50	155	54	80	15	18	35	10	140	5.7	300	2180	2.2
8	8	GV 55	55	155	54	80	15	18	35	10	140	5.6	300	2180	2.2
9	9	GV 60	60	155	54	80	15	18	35	10	140	5.5	300	2180	2.2
10	10	GV 70	70	155	54	80	15	18	35	10	140	5.3	300	2180	2.2
11	11	GV 80	80	190	64	80	20	20	40	20	155	8.7	200	2930	3.5
12	12	GV 90	90	260	90	120	25	-	-	-	220	24.5	150	7250	3.5
13	13	GV 100	100	260	90	120	25	-	-	-	220	23.5	150	7250	3.5
14	14	GV 110	110	260	90	120	25	-	-	-	220	22.5	150	7250	3.5
15	15	GV 120	120	300	110	140	30	-	-	-	220	42	130	11100	6
