model GL

Manufacturer	T.E.A. TECHNIK s.r.o. - Czech Republic

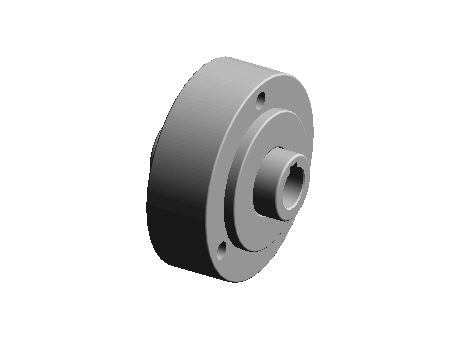

Description	model GL
Part number	GL 12

CAD models

Product selection

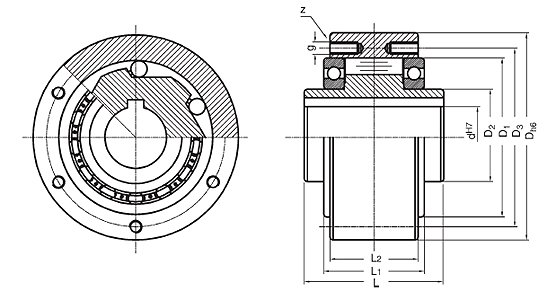

Index	Selector	order number	dH7 (mm)	Dh6 (mm)	L (mm)	L1 (mm)	L2 (mm)	D1 (mm)	D2 (mm)	D3 (mm)	z	g	speed inner ring (rpm)	speed outer ring (rpm)	TN (N.m)	no load torque (N.m)	weight (kg)
1	1	GL 12	12	62	42	27	20	42	20	51	3	5,5	4000	5600	55	0.11	0.5
2	2	GL 15	15	68	52	32	28	47	25	56	3	M5	3700	5300	125	0.15	0.8
3	3	GL 20	20	75	57	39	34	55	30	64	4	M5	2700	4600	181	0.18	1
4	4	GL 25	25	90	60	40	35	68	40	78	4	M6	2200	3600	288	0.36	1.5
5	5	GL 30	30	100	68	48	43	75	45	87	6	M6	1800	3300	500	0.4	2.2
6	6	GL 35	35	110	74	51	45	80	50	96	6	M6	1500	3000	735	0.6	3
7	7	GL 40	40	125	86	59	53	90	55	108	6	M8	1200	2600	1040	0.84	4.6
8	8	GL 45	45	130	86	59	53	95	60	112	8	M8	1000	2400	1125	0.94	4.7
9	9	GL 50	50	150	94	72	64	110	70	132	8	M8	850	2200	2125	1.28	7.2
10	10	GL 55	55	160	104	72	66	115	75	138	8	M10	750	2000	2625	1.5	8.6
11	11	GL 60	60	170	114	89	78	125	80	150	10	M10	650	1900	3500	1.6	10.5
12	12	GL 70	70	190	134	108	95	140	90	168	10	M10	550	1700	5750	3.6	13.5
13	13	GL 80	80	210	144	108	100	160	105	185	10	M10	500	1600	8500	3.6	18.2
14	14	GL 90	90	230	158	125	115	180	120	206	10	M12	450	1500	14500	6.8	28.5
15	15	GL100	100	270	182	131	120	210	140	240	10	M16	350	1250	20000	8.8	42.5
16	16	GL120	120	310	202	152	140	240	160	278	12	M16	300	1100	25000	12	56
17	17	GL130	130	310	212	168	152	240	160	278	12	M16	250	1000	31250	12.5	65
18	18	GL150	150	400	246	194	180	310	200	360	12	M20	200	800	70000	13.5	138
19	19	GL 25/22	22	90	60	40	35	68	40	78	4	M6	2200	3600	288	0.36	1.5
20	20	GL 25/24	24	90	60	40	35	68	40	78	4	M6	2200	3600	288	0.36	1.5
21	21	GL 25/28	28	90	60	40	35	68	40	78	4	M6	2200	3600	288	0.36	1.5
22	22	GL 30/28	28	100	68	48	43	75	45	87	6	M6	1800	3300	500	0.4	2.2
23	23	GL 30/32	32	100	68	48	43	75	45	87	6	M6	1800	3300	500	0.4	2.2
24	24	GL 35/38	38	110	74	51	45	80	50	96	6	M6	1500	3000	7350	0.6	3
25	25	GL45/48	48	130	86	59	53	95	60	112	8	M8	1000	2400	1125	0.94	4.7
