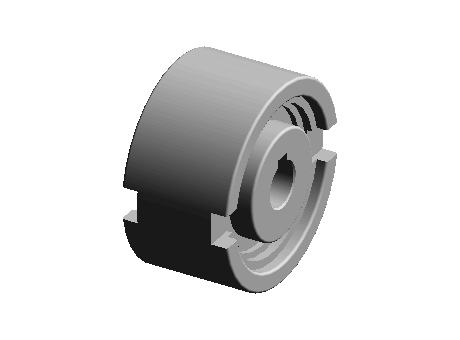

model GF

Manufacturer	T.E.A. TECHNIK s.r.o. - Czech Republic
Description	model GF
Part number	GF 8

CAD models

Request for quotation

Product selection

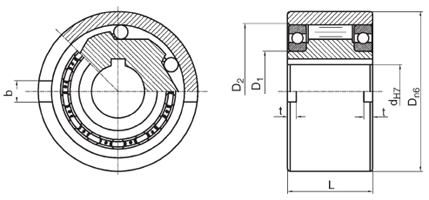

Index	Selector	order number	dH7 (mm)	Dn6 (mm)	L (mm)	s (mm)	D1 (mm)	D2 (mm)	b (mm)	t (mm)	weight (kg)	speed inner ring (rpm)	speed outer ring (rpm)	TN (N.m)	no load torque (N.m)
1	1	GF 8	8	37	20	1	20	30	6	3	0.1	1000	1000	20	0.09
2	2	GF 9	9	37	20	1	20	30	6	3	0.1	1000	1000	20	0.09
3	3	GF 12	12	37	20	1	20	30	6	3	0.1	1000	1000	20	0.11
4	4	GF 15	15	47	30	1	26	37	7	3.5	0.3	900	900	78	0.15
5	5	GF 20	20	62	36	1	37	52	8	3.5	0.6	700	700	188	0.18
6	6	GF 25	25	80	40	-	40	68	9	4	1.2	2100	3600	250	0.36
7	7	GF 30	30	90	48	-	45	75	12	5	1.8	1700	3200	500	0.4
8	8	GF 35	35	100	53	-	50	80	13	6	2.4	1500	3000	680	0.6
9	9	GF 40	40	110	63	-	55	90	15	7	3.3	1200	2600	1115	0.84
10	10	GF 45	45	120	63	-	60	95	16	7	4	1000	2400	1500	0.94
11	11	GF 50	50	130	80	-	70	110	17	8.5	5.7	800	2100	2375	1.28
12	12	GF 55	55	140	80	-	75	115	18	9	6.5	750	2000	2500	1.5
13	13	GF 60	60	150	95	-	80	125	18	9	8.9	650	1900	4250	1.6
14	14	GF 70	70	170	110	-	95	140	20	9	13.5	550	1800	5875	3.6
15	15	GF 80	80	190	125	-	110	160	20	9	19	500	1600	10000	3.6
16	16	GF 90	90	215	140	-	120	180	24	11.5	27.2	450	1400	17350	6.8
17	17	GF 100	100	260	150	-	140	210	28	14.5	44.5	350	1300	19750	8.8
18	18	GF 130	130	300	180	-	160	240	32	17.5	68	250	1000	35000	12.5
