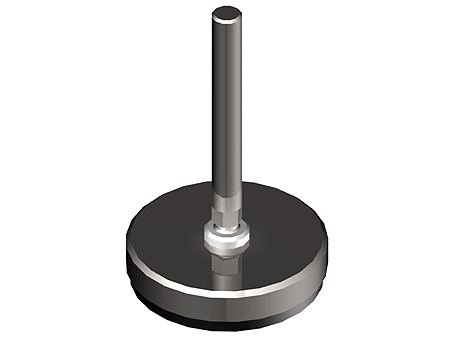

Machine Footing, Stainless, Base Plate: Stainless Steel 1.4301

Manufacturer	T.E.A. TECHNIK s.r.o. - Czech Republic
Description	Machine Footing, stainless, Base Plate Stainless Steel 1.4301
Reference	5060.08 100
Note	inclusive 2 Hexagon Nut DIN 934

CAD models

Request for quotation

Product selection

Index	Selector	Order no.	M	D (mm)	D1 (mm)	h (mm)	HD (mm)	L (mm)	m (mm)	m1	SW (mm)	Load (N)	Weight (kg)
1	1	5060.08 100	M 8	50	52	12.5	82.5	60	6.5		7	1500	0.152
2	2	5060.10 100	M 10	60	62	13	106	80	8		8	2300	0.248
3	3	5060.12 100	M 12	70	73	18	135	100	10		10	3300	0.48
4	4	5060.16 100	M 16	80	84	18	154	115	13		13	6000	0.716
5	5	5060.20 100	M 20	100	104	22	198	150	16		17	9400	1.37
6	6	5060.24 100	M 24	115	119	24	236	180	18		19	13000	2.175
7	7	MF 8.40 SS	M 8	37	40	13	73	60	6.5	2.6	13	2000	0.066
8	8	MF 10.60 SS	M 10	57	60	18	88	70	8	3.2	17	3000	0.184
9	9	MF 12.60 SS	M 12	57	60	18	95	80	10	3.7	19	4000	0.226
10	10	MF 14.80 SS	M 14	75	80	26	126	100	11	4.4	22	10000	0.472
11	11	MF 16.80 SS	M 16	75	80	26	146	120	13	5	24	15000	0.53
12	12	MF 20.100 SS	M 20	95	100	30	180	150	16	6.5	30	20000	0.924
13	13	MF 24.100 SS	M 24	95	100	30	210	180	18	7.5	36	25000	1.25
