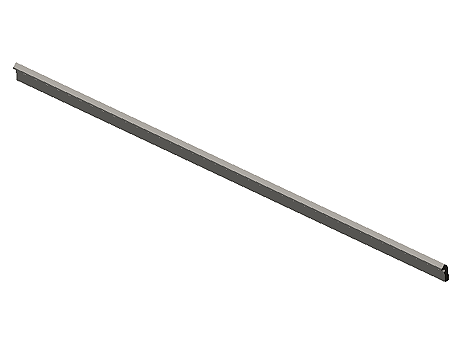

LinTrek Guide Rails

Manufacturer	T.E.A. TECHNIK s.r.o. - Czech Republic
Description	LinTrek Guide Rails
Reference	FS-1 500

CAD models

Request for quotation

Product selection

Index	Selector	Order No.	Material	E (mm)	F (mm)	G (mm)	J (mm)	MDT (mm)	Weight (kg/m)
1	1	FS-1	AISI1045	11.09	4.74	0.78	1.57	3.17	0.27
2	2	FS-2	AISI1045	15.87	6.35	0.78	2.36	4.75	0.51
3	3	FS-3	AISI1045	22.22	8.71	1.57	2.76	6.35	1.03
4	4	FS-4	AISI1045	26.97	11.09	2.36	3.17	7.92	1.64
5	5	FS-1SS	AISI420	11.09	4.74	0.78	1.57	3.17	0.27
6	6	FS-2SS	AISI420	15.87	6.35	0.78	2.36	4.75	0.51
7	7	FS-3SS	AISI420	22.22	8.71	1.57	2.76	6.35	1.03
8	8	FS-4SS	AISI420	26.97	11.09	2.36	3.17	7.92	1.64

Length (mm)

Contact the supplier
