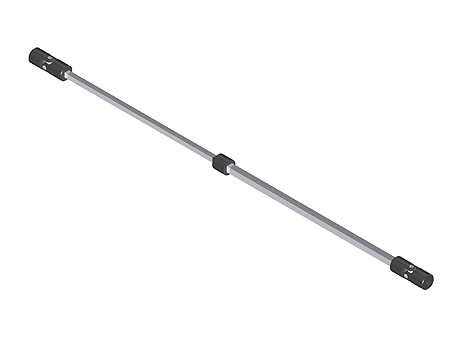

HUCO-POL® Plastic Universal Joint, (Telescopic), Type DC

Manufacturer	T.E.A. TECHNIK s.r.o. - Czech Republic
Description	HUCO-POL® plastic telescopic shaft. Type DC
Reference	G20DC 9.525 9.525

CAD models

Request for quotation

Product selection

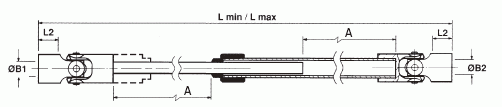

Index	Selector	Order no.	D (mm)	Lmin (mm)	Lmax (mm)	A (mm)	B1+B2 Ø min (mm)	B1+B2 Ø max (mm)	L2 (mm)	Joints	Pulse torque (N.m)	Static rupture torque (N.m)	Gewicht (g)
1	1	G20DC	23	464	745	281	9.525	12.7	17	E20D	2.8	17	204
2	2	G25DC	28.5	500	784	284	12	14	20	E25D	5.6	34	403
3	3	G32DC	36.5	564	868	304	15.875	20	21	E32D	10.7	72	712
4	4	G20DC Ni	23	464	745	281	9.525	12.7	17	E20D	2.8	17	204
5	5	G25DC Ni	28.5	500	784	284	12	14	20	E25D	5.6	34	403
6	6	G32DC Ni	36.5	564	868	304	15.875	20	21	E32D	10.7	72	712

B1 (mm)

B2 (mm)

Contact the supplier
