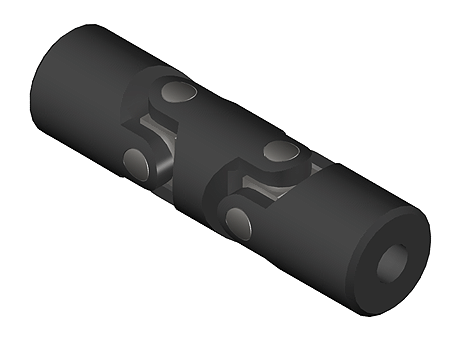

HUCO-POL® Plastic Universal Joint, (Double), Type A

Manufacturer	T.E.A. TECHNIK s.r.o. - Czech Republic
Description	HUCO-POL® plastic universal joint, type A, double
Reference	D6A3-3

CAD models

Request for quotation

Product selection

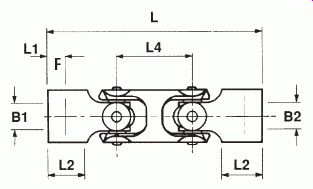

Index	Selector	Order no.	D (mm)	L (mm)	F (mm)	B1+B2 Ø min (mm)	B1+B2 Ø max (mm)	L2 (mm)	Pulse torque (N.m)	Static rupture torque (N.m)	Torsional stiffness (Nm/rad)	J kgm²x10-8	Gewicht (g)	Max. extension ang ±0	Max. extension rad ±mm	L4 (mm)
1	1	D6A	7.1	27.2	3.3	3	4.76	5.3	0.08	0.34	0.7	0.6	1.1	90	5.6	8.1
2	2	D9A	11.1	41.7	4.3	4	6.35	8.6	0.16	1.9	4.3	5.9	4.5	90	9.1	13.2
3	3	D13A	14.3	51.4	5.6	6	8	10.4	0.59	3.4	7.1	23.7	9.6	90	10.9	15.9
4	4	D16A	17.5	75.5	8.9	8	10	15.2	1.3	6.8	12.6	63.5	19.7	90	15.5	22.2

B1 (mm)

B2 (mm)
