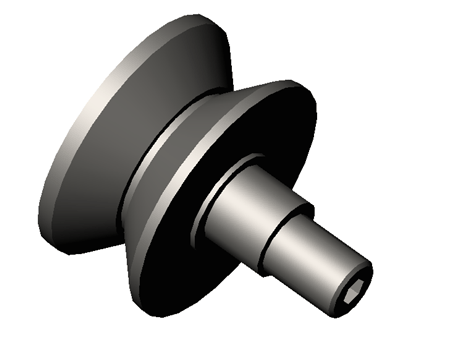

Giude Rollers with Eccentric bolt

Manufacturer	T.E.A. TECHNIK s.r.o. - Czech Republic
Description	Giude Rollers with Eccentric Journals
Reference	HPVE26

CAD models

Request for quotation

Product selection

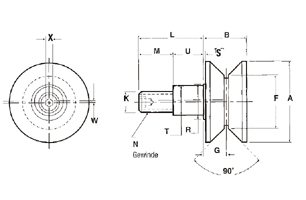

Index	Selector	Order No.	A (mm)	B (mm)	F (mm)	G (mm)	K (mm)	L (mm)	M (mm)	N	R (mm)	S (mm)	T (mm)	U (mm)	W (mm)	X (mm)	Housing Hole (mm)	Weight (kg)
1	1	HPVE26	40	20	26	10	10	23	13	M10x1,0	17.1	0.8	13	10	0.5	4	13.02	0.26
2	2	HPVE32	50	22	32	11	12	25	14	M12x1,5	17.5	0.8	15	11	0.5	4	15.02	0.3
3	3	HPVE40	60	33	40	17	14	40	24	M14x2,0	28.5	1.6	22	16	1	8	22.02	0.48
4	4	HPVE62	90	44.5	62	23	24	58	38	M24x3,0	43	1.6	28	20	1.5	8	28.02	1.51
5	5	HPVE62-1	90	44.5	62	23	24	49.5	27.5	M24x1,5	43	1.6	28	22	1	8	28.02	1.48
6	6	HPVE76	120	50.5	76	26	24	70	41	M24x1,5	50	1.6	35	29	1.5	8	35.02	2.67
7	7	HPVE100	140	50.5	100	26	24	70	41	M24x1,5	50	1.6	35	29	1.5	8	35.02	4.04
8	8	HPVE125	165	76	125	37.8	48	105	55	M48x5,0	82.5	1.6	64	50	1.5	12	64.02	10.47
