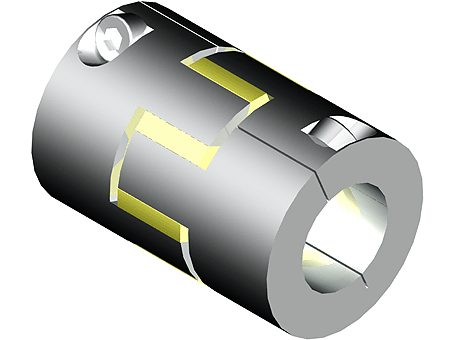

Coupling (anti-backlash), with bore H7, single slotted version with 1 set screw, no key way

Manufacturer	T.E.A. TECHNIK s.r.o. - Czech Republic
Description	Coupling without backlash, with bore H7, single slotted version with 1 set screw, no key way
Reference	D9FB - 9KS92

CAD models

Product selection

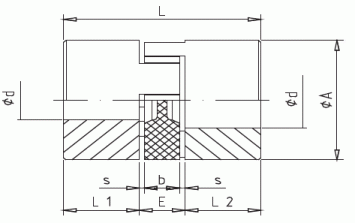

Index	Selector	Order no.	no bore	d min (mm)	d max (mm)	A (mm)	L (mm)	L1/L2 (mm)	E (mm)	b (mm)	s (mm)	g1	f (mm)	TA (N.m)
1	1	D9FB	x	4	11	20	30	10	10	8	1	M2,5	2.5	0.76
2	2	D14FB	x	4	16	30	35	11	13	10	1.5	M3	5	1.34
3	3	D19/24FB	x	6	24	40	66	25	16	12	2	M6	12	10.5

Bore diameter left hub (mm)

Bore diameter right hub (mm)

Index	Selector	Order no.	Spider shore	Spider color	Tkn nominal torque (N.m)	Tkmax (N.m)	Max. speed V=30m/s (rpm)
1	1	9KS92	92°A	yellow	3	6	28000
2	2	9KS64	64°D	green	6	12	28000
3	3	9KS98	98°A	red	5	10	28000
