Bevel Gears, 1:3 Ratio, Plastic (Injection moulded)

Manufacturer	T.E.A. TECHNIK s.r.o. - Czech Republic

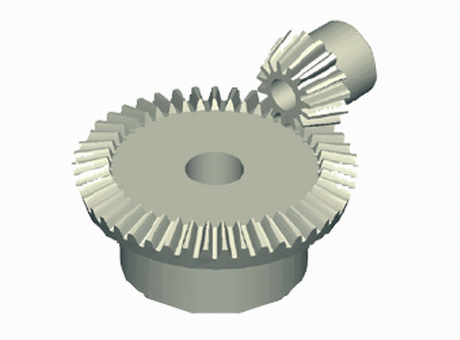

Description	Bevel Gears, straight geared of injection molded Plastic, Ratio 1:3
Reference	P 101545-15

CAD models

Request for quotation

Product selection

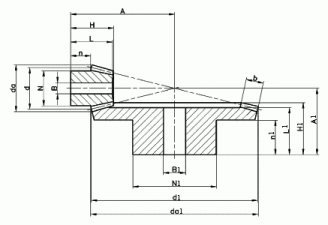

Index	Selector	Order no.	Teeth	Teeth 1	Module	i	d (mm)	d1 (mm)	da (mm)	da1 (mm)	N (mm)	N1 (mm)	n (mm)	n1 (mm)	L (mm)	L1 (mm)	H (mm)	H1 (mm)	A (mm)	A1 (mm)	b (mm)	B (mm)	B1 (mm)	Tol. B	Tol. B1	Material
1	1	P 101545-15	15		1	1:3	15		16.6		12.3		11		20.4		20.4		34.3		9.2	5		H7		Hostaform C
2	2	P 101545-45		45	1	1:3		45		46.1		23.4		9.6		16.5		18.2		22.7	9.2		10	H7		Hostaform C
3	3	P 101545	15	45	1	1:3	15	45	16.6	46.1	12.3	23.4	11	9.6	20.4	16.5	20.4	18.2	34.3	22.7	9.2	5	10	H7		Hostaform C
4	4	P 151545-15	15		1.5	1:3	22.5		25.1		17.2		12.5		26.8		26.8		47.9		14	8		H7		Hostaform C
5	5	P 151545-45		45	1.5	1:3		67.5		68.8		30.4		11.5		21.5		23		29.4	14		12	H7	H7	Hostaform C
6	6	P 151545	15	45	1.5	1:3	22.5	67.5	25.1	68.8	17.2	30.4	12.5	11.5	26.8	21.5	26.8	23	47.9	29.4	14	8	12	H7	H7	Hostaform C
7	7	P 201030-10	10		2	1:3	20		24		16.6		12		25		25		43.7		12.5	6		H7		Hostaform C
8	8	P 201030-30		30	2	1:3		60		61.7		30.3		11.5		20.2		22.5		28	12.5		12	H7	H7	Hostaform C
9	9	P 201030	10	30	2	1:3	20	60	24	61.7	16.6	30.3	12	11.5	25	20.2	25	22.5	43.7	28	12.5	6	12	H7	H7	Hostaform C
10	10	P 251030-10	10		2.5	1:3	25		29.7		18.8		13		28.8		28.8		52.4		15.7	8		H7		Hostaform C
11	11	P 251030-30		30	2.5	1:3		75		77.2		36.1		15.5		25.2		29		35.7	15.7		18	H7	H7	Hostaform C
12	12	P 251030	10	30	2.5	1:3	25	75	29.7	77.2	18.8	36.1	13	15.5	28.8	25.2	28.8	29	52.4	35.7	15.7	8	18	H7	H7	Hostaform C
