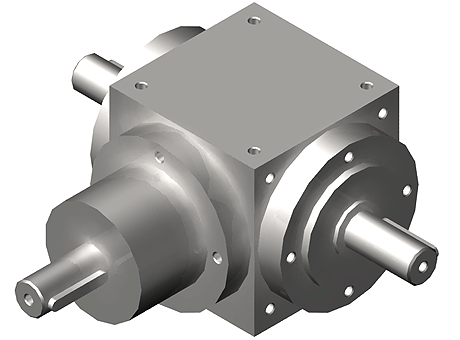

bevel gearbox form A

Manufacturer	T.E.A. TECHNIK s.r.o. - Czech Republic
Description	bevel gearbox form A
Part number	BG12 A 1:1 10 O

CAD models

Request for quotation

Product selection

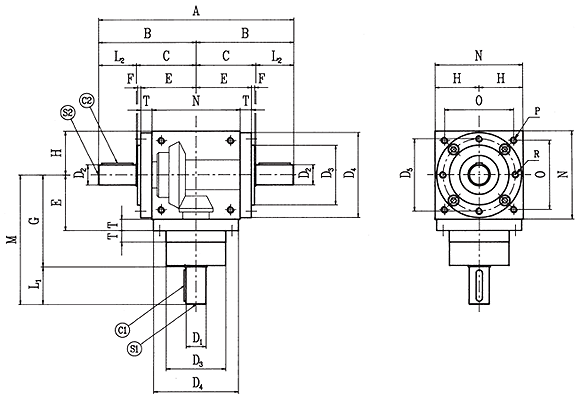

Index	Selector	order number	reduction	A (mm)	B (mm)	C (mm)	D1 (mm)	D2 (mm)	D3 (mm)	D4 (mm)	D5 (mm)	E (mm)	F (mm)	G (mm)	H (mm)	L1 (mm)	L2 (mm)	M (mm)	N (mm)	O (mm)	P	R	S1	S2	C1	C2	T
1	1	BG12	1, 2, 3	144	72	46	12	12	44	-	54	42	2	74	32.5	26	26	100	65	45	M6	M6	M4x8	M4x8	20x4x4	20x4x4	-
2	2	BG19	1, 2, 3	210	105	65	19	19	60	86	72	59	4	100	45	40	40	140	90	70	M6	M6	M6x12	M6x12	35x6x6	35x6x6	14
3	3	BG19	4, 5	210	105	65	14	19	60	86	72	59	4	100	45	30	40	130	90	70	M6	M6	M5x10	M6x12	25x5x5	35x6x6	14
4	4	BG24	1, 2, 3	260	130	80	24	24	70	105	88	73	5	115	55	50	50	165	110	88	M8	M8	M8x16	M8x16	40x8x7	40x8x7	18
5	5	BG24	4, 5	260	130	80	19	24	70	105	88	73	5	115	55	40	50	155	110	88	M8	M8	M6x12	M8x16	35x6x6	40x8x7	18
6	6	BG32	1, 2, 3	310	155	95	32	32	95	135	115	88	5	145	70	60	60	205	140	110	M10	M10	M10x20	M10x20	50x10x8	50x10x8	18
7	7	BG32	4, 5	310	155	95	24	32	95	135	115	88	5	145	70	50	60	195	140	110	M10	M10	M8x16	M10x20	40x8x7	50x10x8	18
8	8	BG38	1, 2, 3	360	180	110	38	38	120	165	145	103	5	170	85	70	70	240	170	136	M12	M12	M12x24	M12x24	60x10x8	60x10x8	18
9	9	BG38	4, 5	360	180	110	28	38	120	165	145	103	5	170	85	60	70	230	170	136	M12	M12	M10x20	M12x24	50x8x7	60x10x8	18
10	10	BG42	1, 2, 3	410	205	125	42	42	135	190	165	118	5	195	100	80	80	275	200	155	M12	M12	M12x24	M12x24	70x12x8	70x12x8	18
11	11	BG42	4, 5	410	205	125	32	42	135	190	165	118	5	195	100	60	80	255	200	155	M12	M12	M10x20	M12x24	50x10x8	70x12x8	18
12	12	BG55	1, 2, 3	520	260	150	55	55	170	230	205	143	5	245	120	110	110	355	240	190	M14	M14	M14x28	M14x28	100x16x10	100x16x10	23
13	13	BG55	4, 5	520	260	150	42	55	170	230	205	143	5	245	120	80	110	325	240	190	M14	M14	M12x24	M14x28	70x12x8	100x16x10	23
14	14	BG75	1, 2, 3	750	375	225	75	75	-	300	-	195	-	350	165	150	150	500	330	248	M16	M16	M16x32	M16x32	140x22x14	140x22x14	30
15	15	BG75	4, 5	750	375	225	55	75	-	300	-	195	-	350	165	110	150	460	330	248	M16	M16	M14x28	M16x32	100x16x10	140x22x14	30

reduction

mounting position

lubration

Contact the supplier
