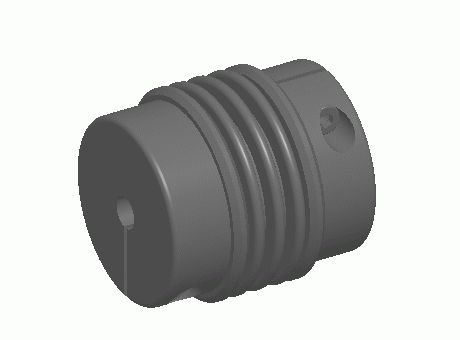

Bellow coupling with stainless steel bellow, short version

Manufacturer	T.E.A. TECHNIK s.r.o. - Czech Republic
Description	Bellow coupling with clamping flange, with stainless steel bellow, type BK
Reference	536,34 6 6

CAD models

Product selection

Index	Selector	Order no.	D (mm)	L	L1 (mm)	d1 min (mm)	d1 max (mm)	d2 min (mm)	d2 min (mm)	M	Max. Speed (rpm)	Max. Torque (N.m)	Flange material	Bellow material	Weight (kg)
1	1	536,34	34	40	14	6	16	6	16	M3	5000	750	Aluminium Alloy, colorless anodized	Spring steel stainless	56
2	2	536,41	41	49.7	18	6.35	20	6.35	20	M4	5000	1000	Aluminium Alloy, colorless anodized	Spring steel stainless	99

Diameter d1 (mm)

Diameter d2 (mm)
