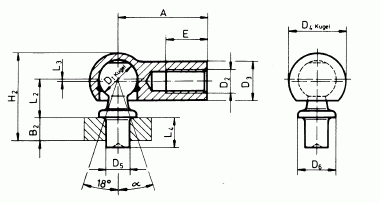

Angle Joint, Pivot Pin, DIN 71802, Hardened Ball Stud, Type B

Manufacturer	T.E.A. TECHNIK s.r.o. - Czech Republic
Description	Angle Joint with Pivot Pin DIN 71802 with hardened Ball Sutd Form B
Reference	B8/4R

CAD models

Product selection

Index	Selector	Order no.	D1 H8/h9 (mm)	L4 (mm)	A (mm)	B2 (mm)	Thread	D2	D3 (mm)	D4 (mm)	D5 H11/h11 (mm)	D6 (mm)	E (mm)	H2 (mm)	L2 (mm)	L3 (mm)	Alpha (°)	Staistical Load (N)	Weight kg/1000 pcs
1	1	B8/4R	8	4	22	2.5	rechts	M5	8	12.8	5	8	10.2	17.5	9	0.3	10	300	12.85
2	2	B8/7R	8	7.5	22	5	rechts	M5	8	12.8	5	8	10.2	20	9	0.3	10	300	13.35
3	3	B10/4R	10	4.5	25	3	rechts	M6	10	14.8	6	10	11.5	21	11	0.5	15	700	21.3
4	4	B10/8R	10	8	25	6	rechts	M6	10	14.8	6	10	11.5	24	11	0.5	15	700	22
5	5	B13/5R	13	5	30	3.5	rechts	M8	13	19.3	8	13	14	25	13	0.8	15	1500	43.1
6	6	B13/10R	13	10	30	8	rechts	M8	13	19.3	8	13	14	30	13	0.8	15	1500	45
7	7	B16/6R	16	6	35	4	rechts	M10	16	24	10	16	15.5	31.5	16	0.5	15	2000	82.3
8	8	B16/13R	16	13	35	10	rechts	M10	16	24	10	16	15.5	37.5	16	0.5	15	2000	86.6
9	9	B19/12R	19	12	45	8	rechts	M14x1,5	22	30	14	19	21.5	42.5	20	0.5	15	3000	181
10	10	B19/18R	19	18	45	14	rechts	M14x1,5	22	30	14	19	21.5	48.5	20	0.5	15	3000	188.7
11	11	B8/4L	8	4	22	2.5	links	M5	8	12.8	5	8	10.2	17.5	9	0.3	10	300	12.85
12	12	B8/7L	8	7.5	22	5	links	M5	8	12.8	5	8	10.2	20	9	0.3	10	300	13.35
13	13	B10/4L	10	4.5	25	3	links	M6	10	14.8	6	10	11.5	21	11	0.5	15	700	21.3
14	14	B10/8L	10	8	25	6	links	M6	10	14.8	6	10	11.5	24	11	0.5	15	700	22
15	15	B13/5L	13	5	30	3.5	links	M8	13	19.3	8	13	14	25	13	0.8	15	1500	43.1
16	16	B13/10L	13	10	30	8	links	M8	13	19.3	8	13	14	30	13	0.8	15	1500	45
17	17	B16/6L	16	6	35	4	links	M10	16	24	10	16	15.5	31.5	16	0.5	15	2000	82.3
18	18	B16/13L	16	13	35	10	links	M10	16	24	10	16	15.5	37.5	16	0.5	15	2000	86.6
19	19	B19/12L	19	12	45	8	links	M14x1,5	22	30	14	19	21.5	42.5	20	0.5	15	3000	181
20	20	B19/18L	19	18	45	14	links	M14x1,5	22	30	14	19	21.5	48.5	20	0.5	15	3000	188.7

Alpha (°)
