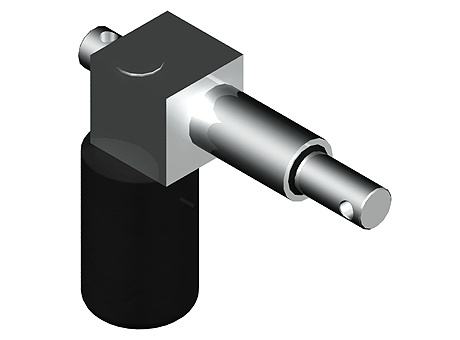

Actuator HG5000, max. Lifting Force 7500 N

Manufacturer	T.E.A. TECHNIK s.r.o. - Czech Republic
Description	Actuator HG5000, axial moved Piston Rod, max. Lifting Force 7500 N
Reference	HG 5000/080/M01/DC-V24-3000/M0/0/0/0/0/0/0/P0/A0

CAD models

Request for quotation

Product selection

Model

Index	Selector	Motor	Force (N)	Speed (mm/s)	Model	Motor Type	Type	Engine Power (kW)	Motor speed (rpm)	Reduction	Thread	Pitch	Efficiency rate	Max. stroke (mm)

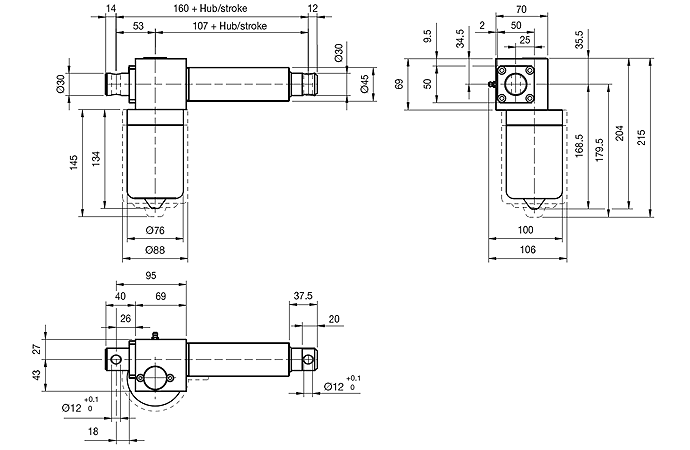

1	5	HG 5000 (24 VDC)	1000	80	M01	DC	76	-	3000	3:1	18	8	0.27	795
2	6	HG 5000 (24 VDC)	2000	40	M02	DC	76	-	3000	10:1	18	8	0.23	935
3	7	HG 5000 (24 VDC)	3000	20	M03	DC	76	-	3000	10:1	18	4	0.21	765
4	8	HG 5000 (24 VDC)	5000	10	M04	DC	76	-	3000	20:1	18	4	0.2	590
5	13	HG 5000 (12 VDC)	1000	80	M01	DC	76	-	2400	3:1	18	8	0.27	795
6	14	HG 5000 (12 VDC)	2000	40	M02	DC	76	-	2400	10:1	18	8	0.23	935
7	15	HG 5000 (12 VDC)	3000	20	M03	DC	76	-	2400	10:1	18	4	0.21	765
8	16	HG 5000 (12 VDC)	5000	10	M04	DC	76	-	2400	20:1	18	4	0.2	590
9	21	HG 5000 (36 VDC)	1000	80	M01	DC	76	-	3000	3:1	18	8	0.27	795
10	22	HG 5000 (36 VDC)	2000	40	M02	DC	76	-	3000	10:1	18	8	0.23	935
11	23	HG 5000 (36 VDC)	3000	20	M03	DC	76	-	3000	10:1	18	4	0.21	765
12	24	HG 5000 (36 VDC)	5000	10	M04	DC	76	-	3000	20:1	18	4	0.2	590

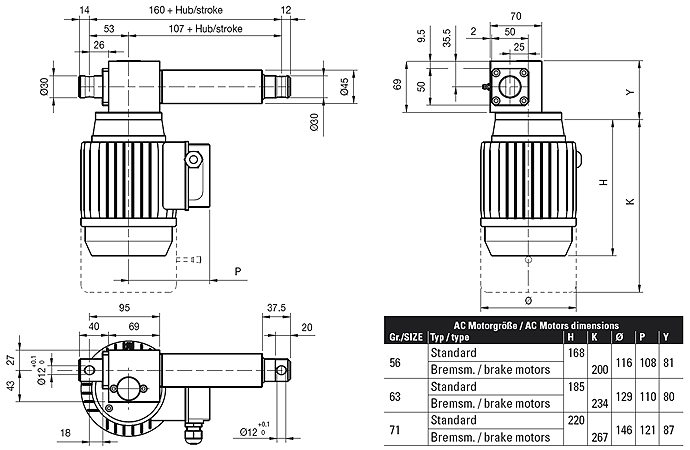

13	43	HG 5000 1-phase-Motor (230 VAC)	1000	80	M01	AC	IEC63	0,37	2800	3:1	18	8	0.27	820
14	44	HG 5000 1-phase-Motor (230 VAC)	2000	40	M02	AC	IEC63	0,37	2800	3:1	18	4	0.24	820
15	45	HG 5000 1-phase-Motor (230 VAC)	4800	20	M03	AC	IEC71	0,37	1400	3:1	18	4	0.24	605
16	46	HG 5000 1-phase-Motor (230 VAC)	7500	10	M04	AC	IEC71	0,37	1400	10:1	18	4	0.21	485
17	47	HG 5000 1-phase-Motor (230 VAC)	7500	5	M05	AC	IEC63	0,18	1400	20:1	18	4	0.2	485
18	53	HG 5000 3-phase-Motor (230 VAC)	1000	80	M01	AC	IEC63	0,37	2800	3:1	18	8	0.27	820
19	54	HG 5000 3-phase-Motor (230 VAC)	2000	40	M02	AC	IEC63	0,37	2800	3:1	18	4	0.24	820
20	55	HG 5000 3-phase-Motor (230 VAC)	4800	20	M03	AC	IEC71	0,37	1400	3:1	18	4	0.24	605
21	56	HG 5000 3-phase-Motor (230 VAC)	7500	10	M04	AC	IEC71	0,37	1400	10:1	18	4	0.21	485
22	57	HG 5000 3-phase-Motor (230 VAC)	7500	5	M05	AC	IEC63	0,18	1400	20:1	18	4	0.2	485
23	61	HG 5000 3-phase-Motor (400 VAC)	1000	80	M01	AC	IEC63	0,37	2800	3:1	18	8	0.27	820
24	62	HG 5000 3-phase-Motor (400 VAC)	2000	40	M02	AC	IEC63	0,37	2800	3:1	18	4	0.24	820
25	63	HG 5000 3-phase-Motor (400 VAC)	4800	20	M03	AC	IEC71	0,37	1400	3:1	18	4	0.24	605
26	64	HG 5000 3-phase-Motor (400 VAC)	7500	10	M04	AC	IEC71	0,37	1400	10:1	18	4	0.21	485
27	65	HG 5000 3-phase-Motor (400 VAC)	7500	5	M05	AC	IEC63	0,18	1400	20:1	18	4	0.2	485

Motor Position

Position of Terminal Box

Potentiometer

Brake Motor

Antirotation Device

Rear end

Front end

Encoder

No of limit switches

Limit Switch Positions

without

Stroke (mm)

Piston Rod extended (mm)

Position FCE / FCM left (mm)

Position FCE / FCM right (mm)
