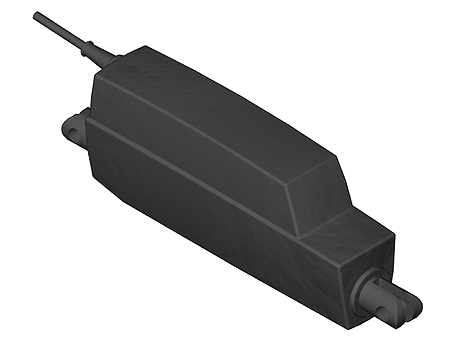

Actuator HG 12, max. Lifting Force 750 N

Manufacturer	T.E.A. TECHNIK s.r.o. - Czech Republic
Description	Actuator HG 12, axial moved Piston Rod, max. Lifting Force 750 N
Reference	HG12122 40 1 0 0 IP51

CAD models

Request for quotation

Product selection

Index	Selector	Order no.	Pitch of spindle (mm)	Voltage (V)	Rated Current at Full Load (A)	Nominal pull/push force (N)	Self locking at max. push force (N)	Self locking at max. pull force (N)	Lifting Speed without Load (m/s)	Lifting Speed with Load (m/s)
1	1	HG12122	2	12	4.6	750	750	375	14	5
2	2	HG12124	4	12	2.5	300	300	150	27	16
3	3	HG12126	6	12	2.2	200	200	100	40	28
4	4	HG12242	2	24	2.2	750	750	375	14	6
5	5	HG12244	4	24	1.5	300	300	150	27	16
6	6	HG12246	6	24	1	200	200	100	40	28

Stroke (mm)

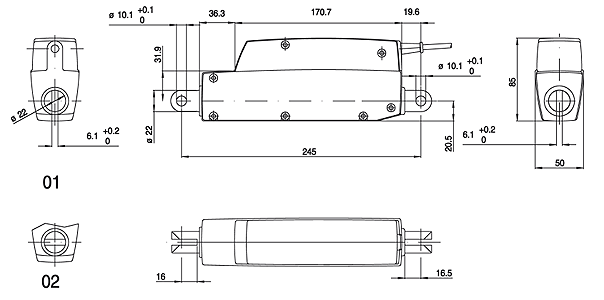

Rear connection

Reed contacts

Wire

Protection Type

Spindle position (mm)

Contact the supplier
