Superflex

Manufacturer	Stemin Breitbach

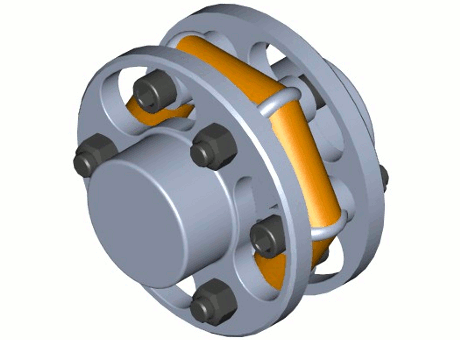

Description	Superflex
Part number	1602SF004KO-8-8
Material	GJS-400
Mass	1.9 kg

CAD models

Request for quotation

Product selection

Index	Selector	Size	Part number	Nom. torque Tkn (N.m)	Max. torque Tkmax (N.m)	Min. bore d4/d5 (mm)	Max. bore d4/d5 (mm)	Max. speed Nmax (min-1)	d6 (mm)	L1 (mm)	Mass (kg)	Material
1	1	4	1602SF004KO	40	80	8	28	9000	106	101	1.9	GJS-400
2	2	8	1602SF008KO	80	160	11	35	7500	134	116	3.1	GJS-400
3	3	16	1602SF016KO	160	320	14	42	6500	151	148	4.8	GJS-400
4	4	27	1602SF027KO	270	540	20	60	5000	191	157	9.1	GJS-400
5	5	55	1602SF055KO	550	1100	25	75	4000	240	208	18.8	GJS-400
6	6	80	1602SF080KO	800	1600	28	85	3500	260	259	30	GJS-400
7	7	120	1602SF120KO	1200	2400	40	95	3000	290	300	42.6	GJS-400
8	8	240	1602SF240KO	2400	4800	40	130	2000	390	380	100.6	GJS-400

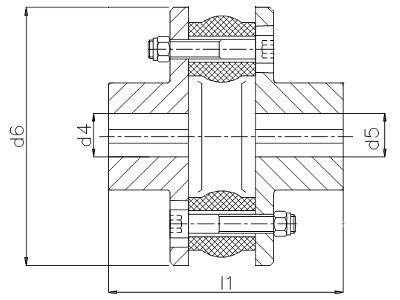

d4 (mm)

d5 (mm)

Product Description

nominal torque TkN = 40 .. 2.400 Nm
bore Ø = 28 .. 130 mm
max. speed n = 9.000 .. 2.000 min-1
angular shaft misalignment Δ Kw = 4,6 .. 4,0 °
radial shaft misalignment Δ Kr = 1,0 .. 3,0 mm
axial shaft misalignment Δ Ka = - 0 .. + 8 mm
torsional angle α = 8 .. 5 °
