Stariflex-SO

Manufacturer	Stemin Breitbach
Description	Stariflex-SO
Part number	3112SO028KO-12-12
Material	steel
Mass	0.85 kg

CAD models

Request for quotation

Product selection

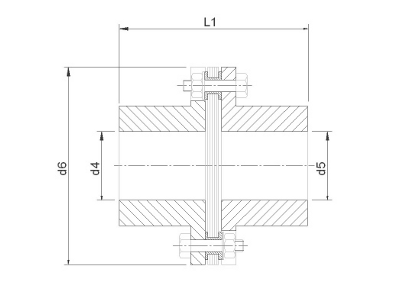

Index	Selector	Size	Part number	Nom. torque Tkn (N.m)	Max. torque Tkmax (N.m)	Min. bore d4/d5 (mm)	Max. bore d4/d5 (mm)	Max. speed Nmax (min-1)	d6 (mm)	L1 (mm)	Mass (kg)	Material
1	1	28	3112SO028KO	30	60	12	28	10700	80	78	0.85	steel
2	2	38	3112SO038KO	50	100	20	38	9300	92	88	1.42	steel
3	3	45	3112SO045KO	100	200	25	45	8400	102	98	2.05	steel
4	4	55	3112SO055KO	200	400	25	55	6700	128	121	4.17	steel
5	5	65	3112SO065KO	400	800	30	65	5900	145	141	6.41	steel
6	6	75	3112SO075KO	630	1260	35	75	5100	168	164	9.57	steel
7	7	80	3112SO080KO	1000	2000	35	80	4750	180	175	12.5	steel
8	8	85-1	3112SO085-1KO	1600	3200	40	85	4300	200	175	15.3	steel
9	9	85-2	3112SO085-2KO	2000	4000	40	85	4200	205	180	16.4	steel
10	10	90	3112SO090KO	2500	5000	45	90	4000	215	200	19.5	steel
11	11	95	3112SO095KO	3200	6400	45	95	3650	235	223	24.8	steel
12	12	100	3112SO100KO	4000	8000	50	100	3400	250	223	29.8	steel

d4 (mm)

d5 (mm)

Product Description

nominal torque TkN = 30 .. 4.000 Nm
bore Ø = 12 .. 100 mm
max. speed n = 10.700 .. 3.400 min-1
angular shaft misalignment Δ Kw = 1 °
radial shaft misalignment Δ Kr = 0 mm
axial shaft misalignment Δ Ka = 0,3 .. 1,0 mm

Documentation

Catalog

Technical Data Sheet
