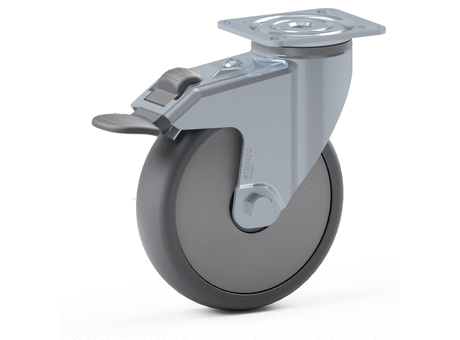

Single wheel swivel castor with total lock, mounting plate 77x67mm, wheel diameter: 100mm, load capacity: 90 kg, with non-marking grey thermoplastic tyres (TPE) / 90 shore A

Single wheel swivel castor

Manufacturer	STEINCO Paul vom Stein GmbH

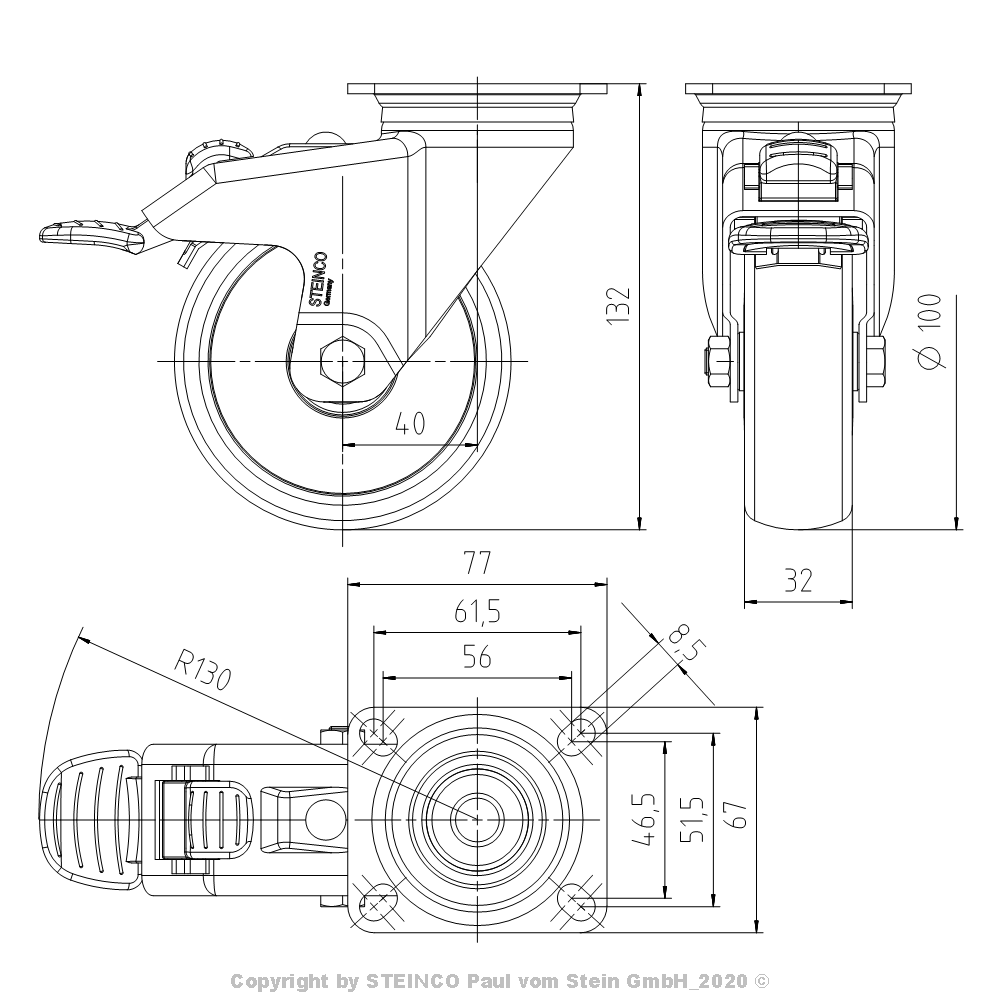

Description	Single wheel swivel castor of series 331R, Ø100 mm with ball bearing and total lock, Mounting plate 77x67mm
Part Number	2.LKS0.NDT0

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Weight (per piece)	Weight (quantity unit)	Series	Offset (mm)	Mounting height (mm)	Swivel radius (mm)	Wheel axle	Housing material	Fork colour	Main colour	Temperature range from (°C)	Temperature range to (°C)	Load capacity (kg)	Load capacity static (kg)	Wheel Ø (mm)	Wheel width (mm)	Wheel bearing	Wheel hardness	Material of wheel hub	Colour of wheel hub/cover	Swivel bearing	Locking device	Central locking system	Attachment	Fitting dimension	Norm 1	Norm 2	Konformität RoHS	Konformität Reach
1	1	2.LKS0.NDT0	Single wheel swivel castor of series 331R, Ø100 mm with ball bearing and total lock, Mounting plate 77x67mm	593	g	331R	40	132	130	Stainless steel screw	Stainless steel	Without	Without	-10	40	90	270	100	32	Ball bearing	90 shore A	Polypropylene	RAL 7004 - Signal grey	Double-row ball bearing	Total lock	Without	Mounting plate	Mounting plate 77x67mm	DIN EN 12530	DIN EN 18867	Yes	Yes

Product Description

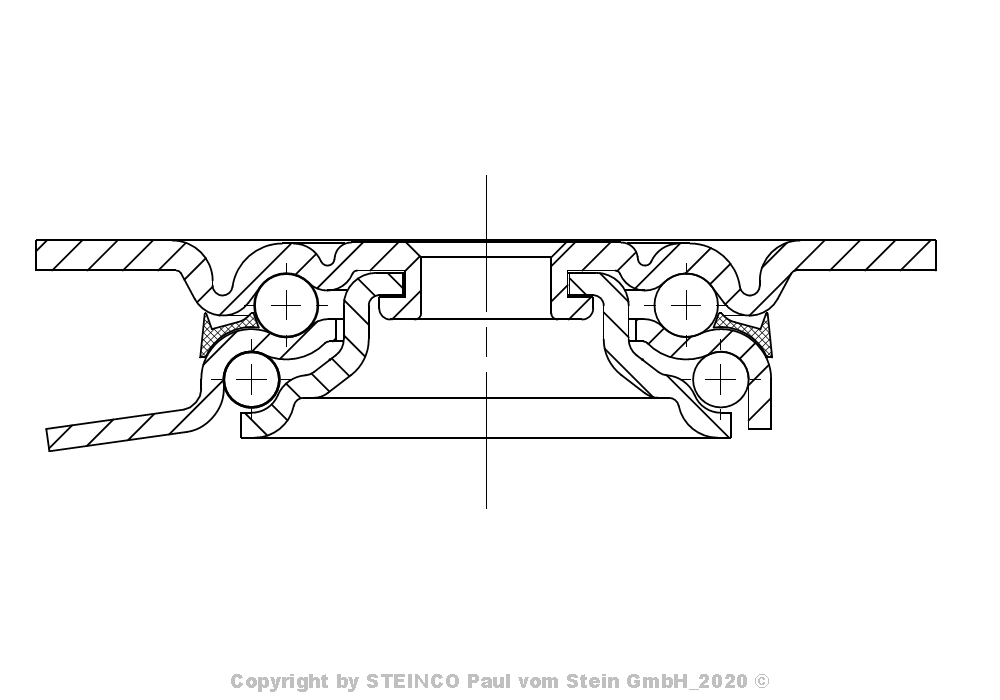

Single wheel swivel castor, Housing made of stainless steel, swivel bearing with double ball bearing
Locking device with total lock (RAL 7024 - Graphite grey)
Wheel with ball bearing and non-marking grey thermoplastic tyres (TPE) with thread guard
Connection via mounting plate 77x67mm
Special functions: cleaning by wipe disinfection possible without restrictions, stainless

Contact the supplier

STEINCO Paul vom Stein GmbH

STEINCO castors and wheels move products in hospitals and medical practices, in offices and stores, for food distribution in commercial kitchens and aircraft and more - all over the world.
