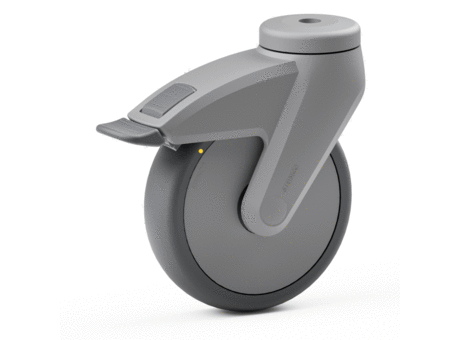

Single wheel swivel castor with total lock, bolt hole M12mm, wheel diameter: 100mm, load capacity: 90 kg, with non-marking grey thermoplastic tyres (TPE) / 90 shore A, Conductive

Single wheel swivel castor

Manufacturer	STEINCO Paul vom Stein GmbH

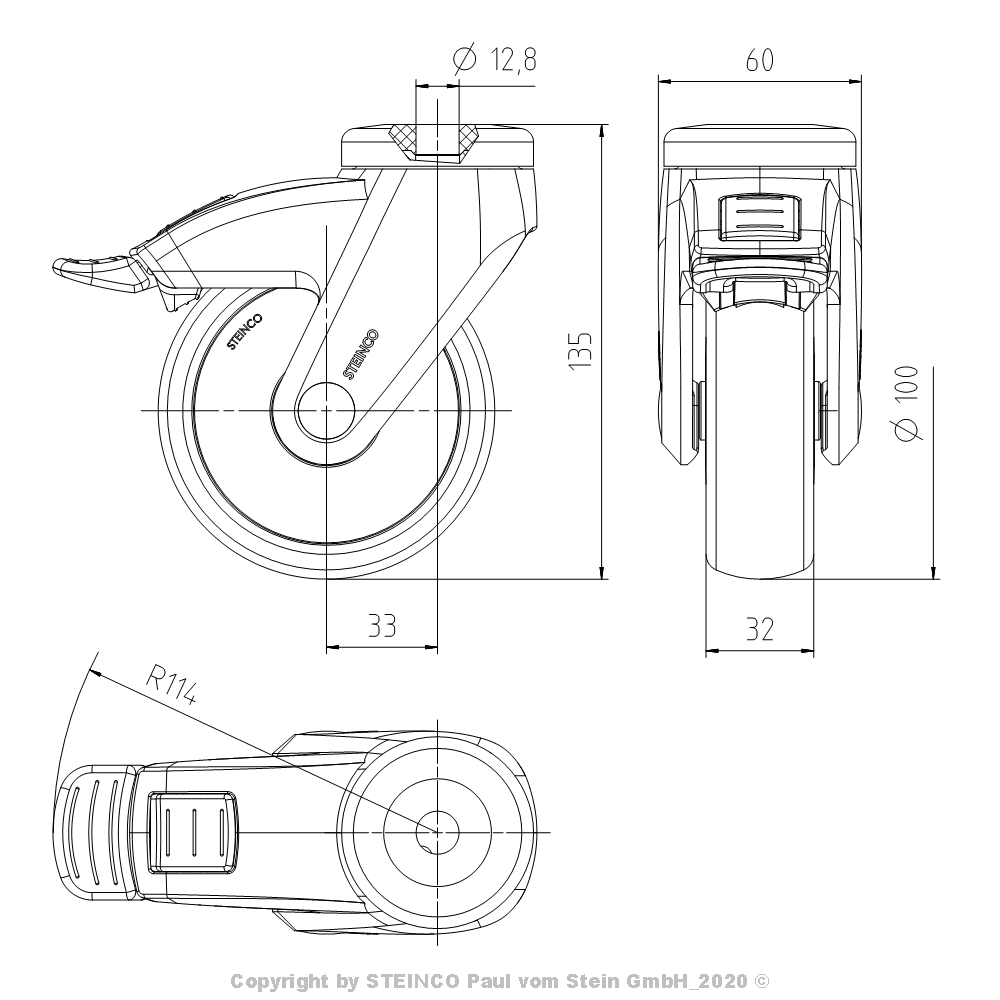

Description	Single wheel swivel castor of series 841, Ø100 mm with ball bearing and total lock, Bolt hole M12mm
Part Number	2.CB40.NCB0

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Weight (per piece)	Weight (quantity unit)	Series	Offset (mm)	Mounting height (mm)	Swivel radius (mm)	Wheel axle	Housing material	Fork colour	Main colour	Temperature range from (°C)	Temperature range to (°C)	Load capacity (kg)	Load capacity static (kg)	Wheel Ø (mm)	Wheel width (mm)	Wheel bearing	Wheel hardness	Material of wheel hub	Colour of wheel hub/cover	Swivel bearing	Locking device	Central locking system	Attachment	Fitting dimension	Norm 1	Konformität RoHS	Konformität Reach
1	1	2.CB40.NCB0	Single wheel swivel castor of series 841, Ø100 mm with ball bearing and total lock, Bolt hole M12mm	436	g	841	33	135	114	Steel riveted	Polyamide	RAL 7004 - Signal grey	RAL 7004 - Signal grey	-10	40	90	270	100	32	Ball bearing	90 shore A	Polypropylene	RAL 7004 - Signal grey	Double-row ball bearing	Total lock	Without	Bolt hole	Bolt hole M12mm	DIN EN 12530	Yes	Yes

Product Description

Single wheel swivel castor, Housing made of polyamide, swivel bearing with double ball bearing, colour: RAL 7004 - Signal grey
Locking device with total lock (RAL 7024 - Graphite grey)
Wheel with ball bearing and non-marking grey thermoplastic tyres (TPE) with thread guard
Connection via bolt hole M12mm
Special functions: cleaning by wipe disinfection possible without restrictions, conductive
