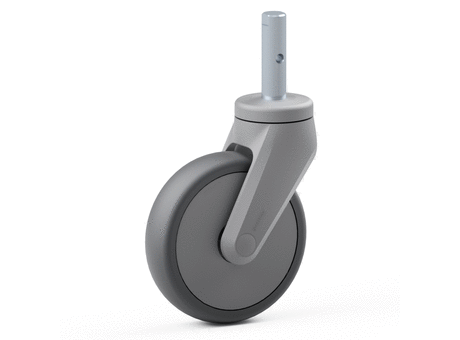

Single wheel swivel castor, stem Ø22x44mm, wheel diameter: 100mm, load capacity: 90 kg, with non-marking grey thermoplastic tyres (TPE) / 90 shore A

Single wheel swivel castor

Manufacturer	STEINCO Paul vom Stein GmbH

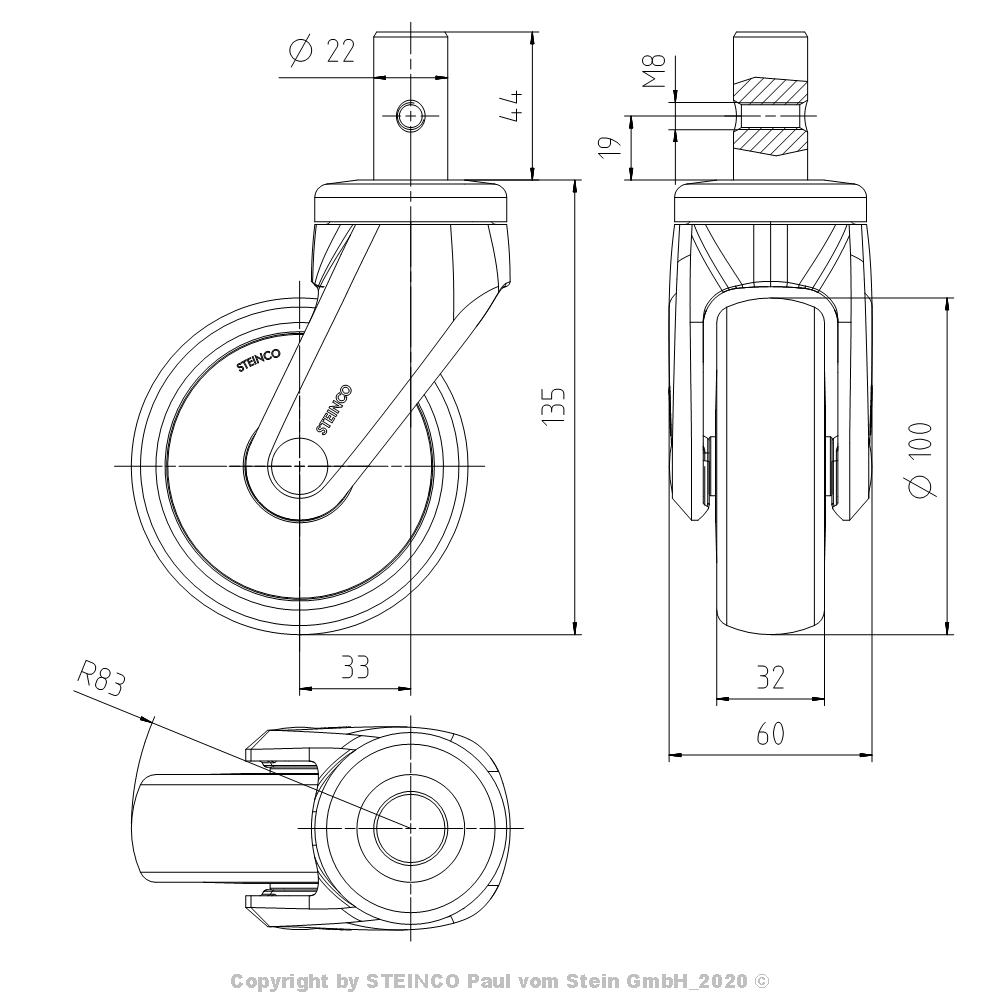

Description	Single wheel swivel castor of series 840, Ø100 mm with ball bearing, Stem Ø22x45mm
Part Number	1.CEW0.NDA0

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Weight (per piece)	Weight (quantity unit)	Series	Offset (mm)	Mounting height (mm)	Swivel radius (mm)	Wheel axle	Housing material	Fork colour	Main colour	Temperature range from (°C)	Temperature range to (°C)	Load capacity (kg)	Load capacity static (kg)	Wheel Ø (mm)	Wheel width (mm)	Wheel bearing	Wheel hardness	Material of wheel hub	Colour of wheel hub/cover	Swivel bearing	Locking device	Central locking system	Attachment	Fitting dimension	Norm 1	Konformität RoHS	Konformität Reach
1	1	1.CEW0.NDA0	Single wheel swivel castor of series 840, Ø100 mm with ball bearing, Stem Ø22x45mm	537	g	840	33	135	83	Steel riveted	Polyamide	RAL 7004 - Signal grey	RAL 7004 - Signal grey	-10	40	90	270	100	32	Ball bearing	90 shore A	Polypropylene	RAL 7004 - Signal grey	Double-row ball bearing	Without	Without	Plain stem with transversal bore	Stem Ø22x45mm	DIN EN 12530	Yes	Yes

Product Description

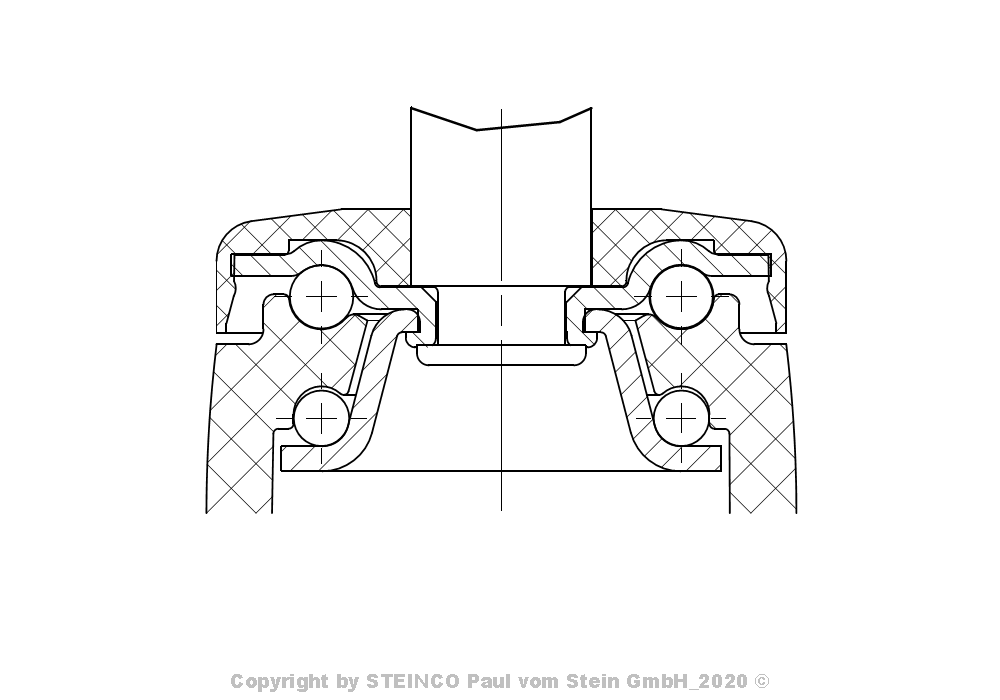

Single wheel swivel castor, Housing made of polyamide, swivel bearing with double ball bearing, colour: RAL 7004 - Signal grey
Wheel with ball bearing and non-marking grey thermoplastic tyres (TPE) with thread guard
Connection via stem Ø22x45mm
Special functions: cleaning by wipe disinfection possible without restrictions
