Single wheel swivel castor, bolt hole M10mm, wheel diameter: 50mm, load capacity: 40 kg, with non-marking whole plastic wheel made of polyamide / 75 shore D

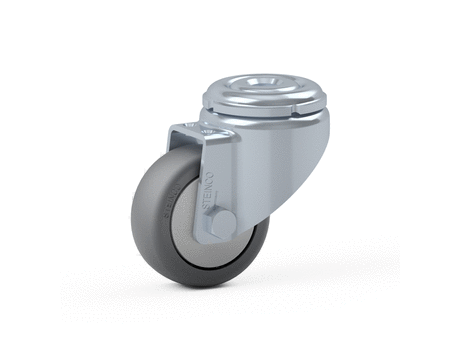

Single wheel swivel castor

Manufacturer	STEINCO Paul vom Stein GmbH

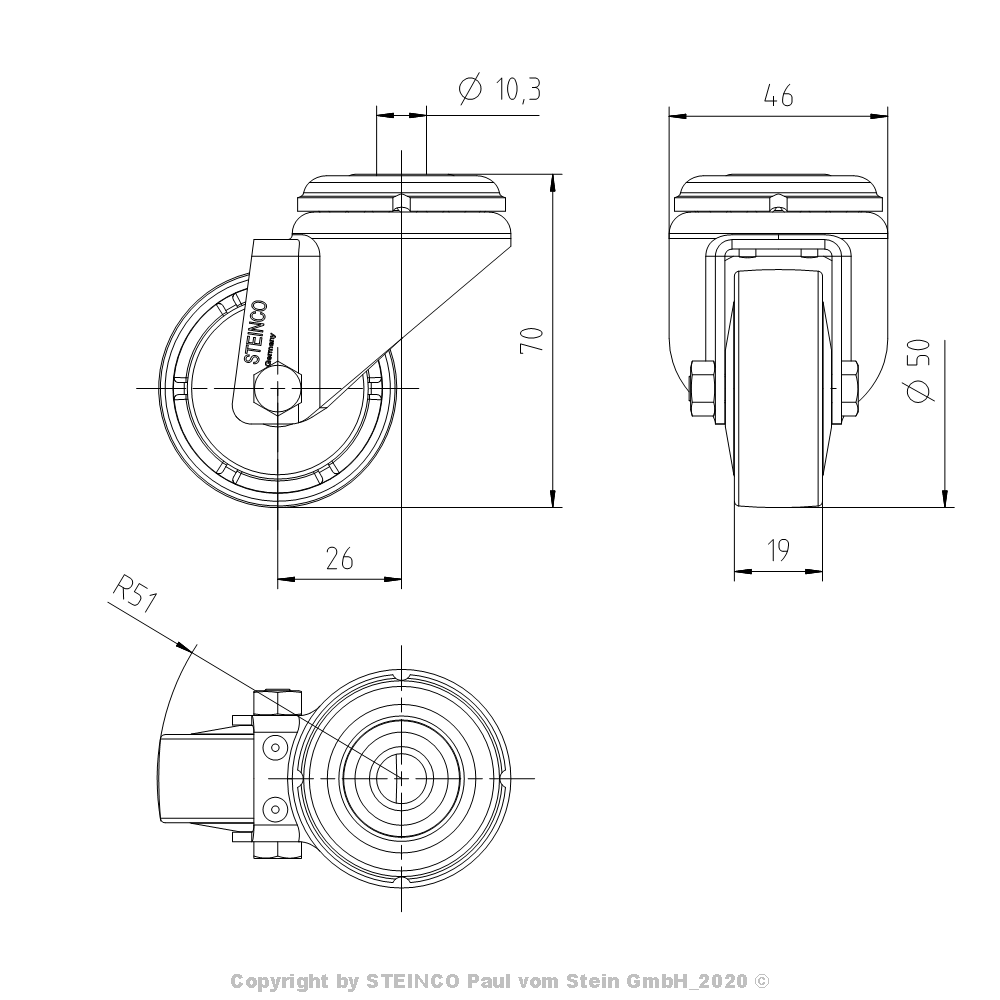

Description	Single wheel swivel castor of series 315, Ø50 mm with plain bearing, Bolt hole M10mm
Part Number	1.HUA0.B020

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Weight (per piece)	Weight (quantity unit)	Series	Offset (mm)	Mounting height (mm)	Swivel radius (mm)	Wheel axle	Housing material	Fork colour	Main colour	Temperature range from (°C)	Temperature range to (°C)	Load capacity (kg)	Load capacity static (kg)	Wheel Ø (mm)	Wheel width (mm)	Wheel bearing	Wheel hardness	Material of wheel hub	Colour of wheel hub/cover	Swivel bearing	Locking device	Central locking system	Attachment	Fitting dimension	Norm 1	Konformität RoHS	Konformität Reach
1	1	1.HUA0.B020	Single wheel swivel castor of series 315, Ø50 mm with plain bearing, Bolt hole M10mm	189	g	315	26	70	51	Steel screwed	Steel	zinc-coated	zinc-coated	-10	40	40	120	50	19	Plain bearing	75 shore D	Polyamide	zinc-coated	Double-row ball bearing	Without	Without	Bolt hole	Bolt hole M10mm	DIN EN 12530	Yes	Yes

Product Description

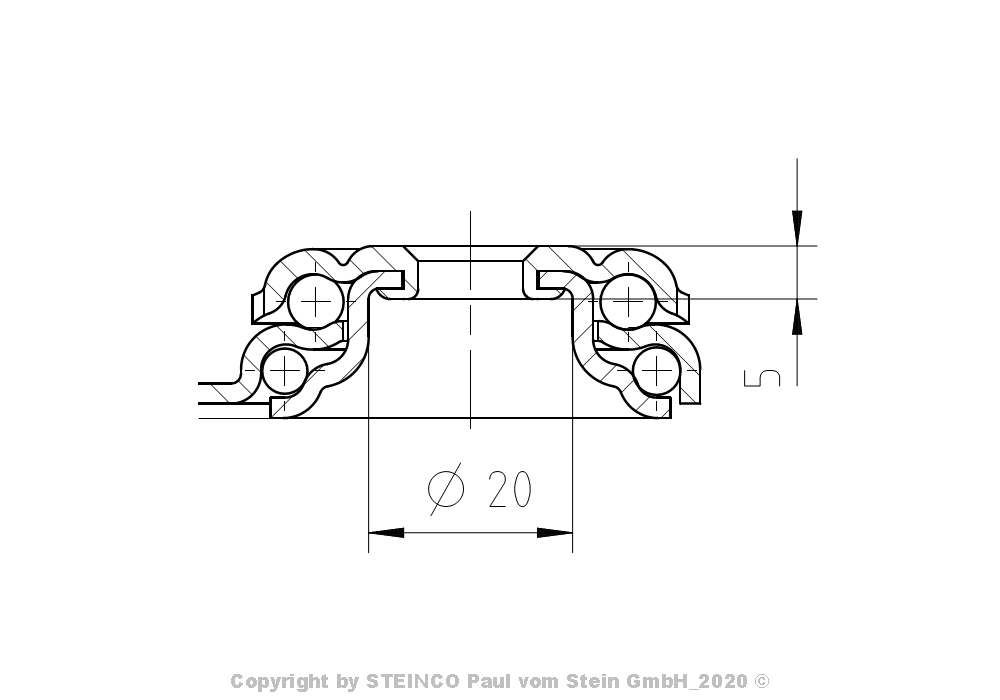

Single wheel swivel castor, Housing made of steel (zinc-coated), swivel bearing with double ball bearing, colour: zinc-coated
Wheel with plain bearing and non-marking whole plastic wheel made of polyamide with thread guard
Connection via bolt hole M10mm
Special functions: cleaning by wipe disinfection possible without restrictions
