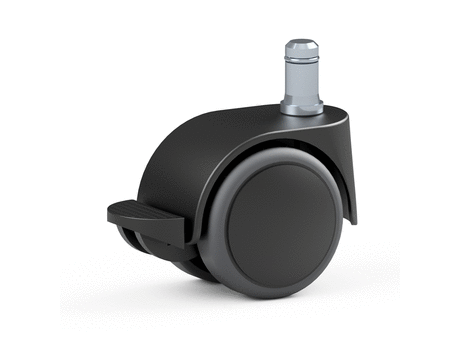

Double swivel castor with wheel lock, bo 11x20mm, wheel diameter: 50mm, load capacity: 50 kg, with non-marking grey polyurethane tyres (TPU) / 94 shore A, Conductive

Double swivel castor

Manufacturer	STEINCO Paul vom Stein GmbH

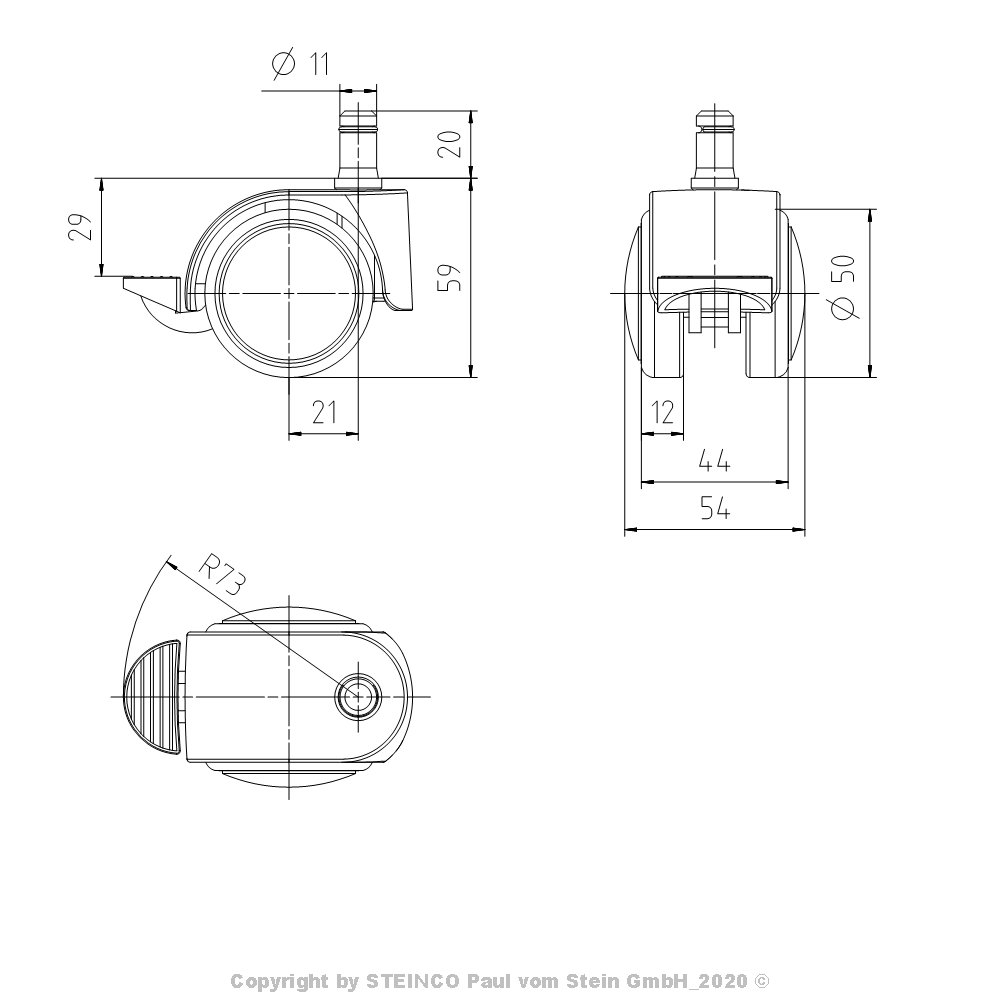

Description	Double swivel castor of series 521, Ø50 mm with plain bearing and wheel lock, Stem Ø11x20mm
Part Number	WW600V

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Weight (per piece)	Weight (quantity unit)	Series	Offset (mm)	Mounting height (mm)	Swivel radius (mm)	Wheel axle	Housing material	Fork colour	Main colour	Temperature range from (°C)	Temperature range to (°C)	Load capacity (kg)	Load capacity static (kg)	Wheel Ø (mm)	Wheel width (mm)	Wheel bearing	Wheel hardness	Material of wheel hub	Colour of wheel hub/cover	Swivel bearing	Locking device	Central locking system	Attachment	Fitting dimension	Norm 1	Konformität RoHS	Konformität Reach
1	1	WW600V	Double swivel castor of series 521, Ø50 mm with plain bearing and wheel lock, Stem Ø11x20mm	112	g	521	21	59	73	Steel	Polypropylene	RAL 9005 - Jet black	RAL 9005 - Jet black	-10	40	50	150	50	12	Plain bearing	94 shore A	Polypropylene	RAL 9005 - Jet black	Plain bearing	Wheel lock	Without	Stem with friction ring	Stem Ø11x20mm	DIN EN 12528	Yes	Yes

Product Description

Double swivel castor, Housing made of polypropylene, swivel bearing with plain bearing, colour: RAL 9005 - Jet black
Locking device with wheel lock (RAL 9005 - Jet black)
Wheel with plain bearing and non-marking grey polyurethane tyres (TPU)

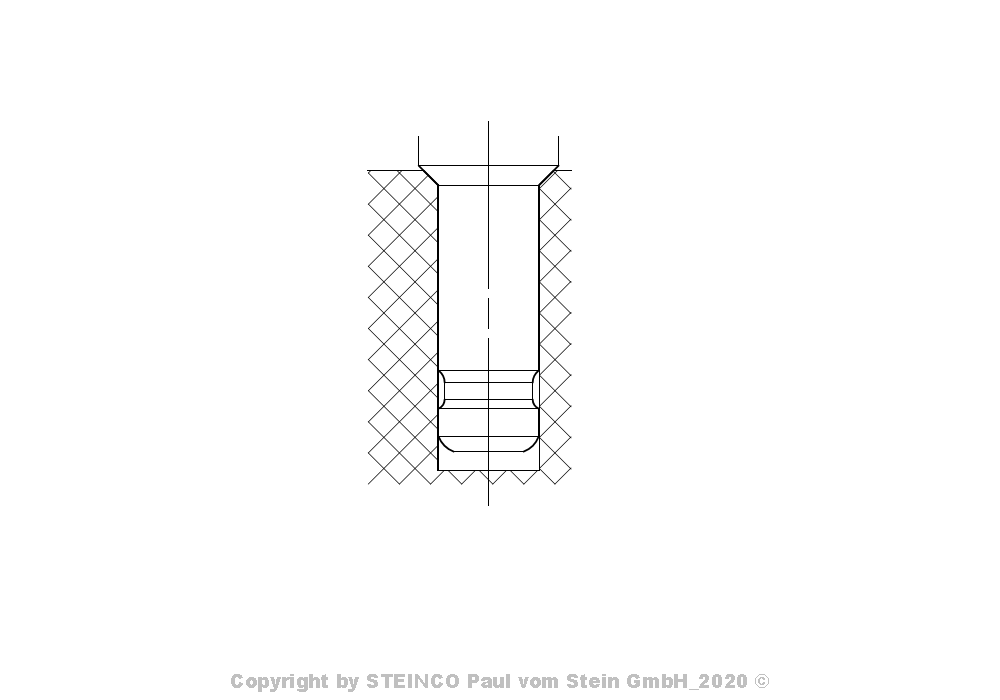

Connection via stem Ø11x20mm
Special functions: cleaning by wipe disinfection possible without restrictions, conductive
