Double swivel castor with total lock, stem Ø10x34mm, wheel diameter: 75mm, load capacity: 70 kg, with non-marking grey polyurethane tyres (TPU) / 94 shore A

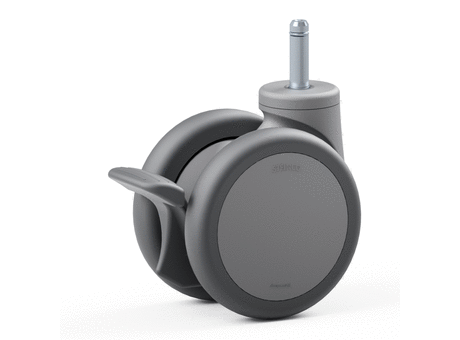

Double swivel castor

Manufacturer	STEINCO Paul vom Stein GmbH

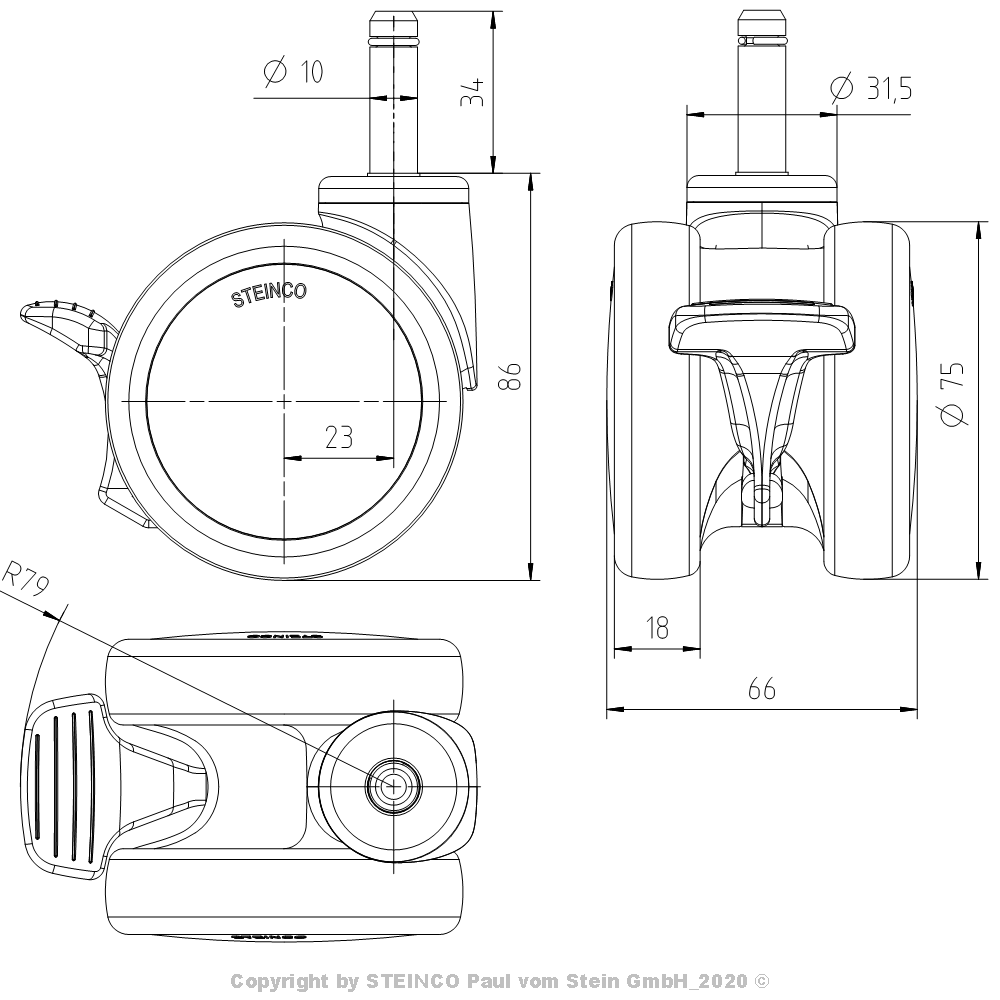

Description	Double swivel castor of series 551, Ø75 mm with ball bearing and total lock, Stem Ø10x34mm
Part Number	4.RLK0.DJA0

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Weight (per piece)	Weight (quantity unit)	Series	Offset (mm)	Mounting height (mm)	Swivel radius (mm)	Wheel axle	Housing material	Fork colour	Main colour	Temperature range from (°C)	Temperature range to (°C)	Load capacity (kg)	Load capacity static (kg)	Wheel Ø (mm)	Wheel width (mm)	Wheel bearing	Wheel hardness	Material of wheel hub	Colour of wheel hub/cover	Swivel bearing	Locking device	Central locking system	Attachment	Fitting dimension	Norm 1	Norm 2	Konformität RoHS	Konformität Reach
1	1	4.RLK0.DJA0	Double swivel castor of series 551, Ø75 mm with ball bearing and total lock, Stem Ø10x34mm	202	g	551	23	86	79	Steel riveted	Polyamide	RAL 7004 - Signal grey	RAL 7004 - Signal grey	-10	40	70	210	75	18	Ball bearing	94 shore A	Polyamide	RAL 7004 - Signal grey	Plain bearing	Total lock	Without	Stem with friction ring	Stem Ø10x34mm	DIN EN 12530	DIN EN 12528	Yes	Yes

Product Description

Double swivel castor, Housing made of polyamide, swivel bearing with plain bearing, colour: RAL 7004 - Signal grey
Locking device with total lock (RAL 7024 - Graphite grey)
Wheel with ball bearing and non-marking grey polyurethane tyres (TPU)
Connection via stem Ø10x34mm
Special functions: cleaning by wipe disinfection possible without restrictions
