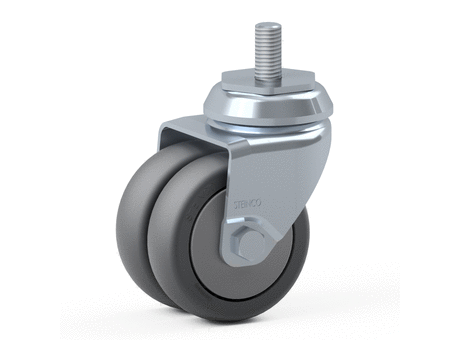

Double swivel castor, screw M10x24mm, wheel diameter: 75mm, load capacity: 90 kg, with non-marking grey thermoplastic tyres (TPE) / 90 shore A

Double swivel castor

Manufacturer	STEINCO Paul vom Stein GmbH

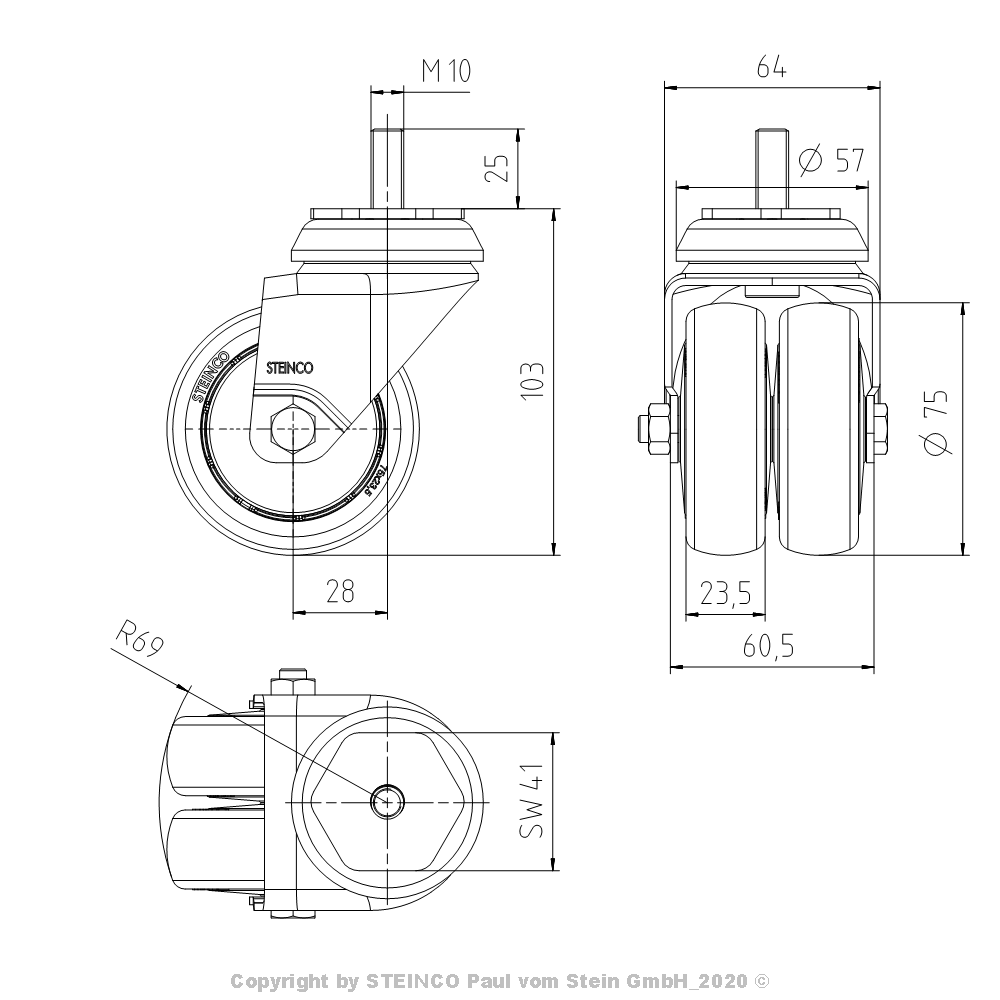

Description	Double swivel castor of series 320, Ø75 mm with plain bearing, Screw M10-24mm
Part Number	1.A1U0.E5W0

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Description	Weight (per piece)	Weight (quantity unit)	Series	Offset (mm)	Mounting height (mm)	Swivel radius (mm)	Wheel axle	Housing material	Fork colour	Main colour	Temperature range from (°C)	Temperature range to (°C)	Load capacity (kg)	Load capacity static (kg)	Wheel Ø (mm)	Wheel width (mm)	Wheel bearing	Wheel hardness	Material of wheel hub	Colour of wheel hub/cover	Swivel bearing	Locking device	Central locking system	Attachment	Fitting dimension	Norm 1	Konformität RoHS	Konformität Reach
1	1	1.A1U0.E5W0	Double swivel castor of series 320, Ø75 mm with plain bearing, Screw M10-24mm	438	g	320	28	103	69	Steel screwed	Steel	zinc-coated	zinc-coated	-10	40	90	270	75	23	Plain bearing	90 shore A	Polypropylene	RAL 7004 - Signal grey	Double-row ball bearing	Without	Without	Screw	Screw M10-24mm	DIN EN 12530	Yes	Yes

Product Description

Double swivel castor, Housing made of steel (zinc-coated), swivel bearing with double ball bearing, colour: zinc-coated
Wheel with plain bearing and non-marking grey thermoplastic tyres (TPE) with thread guard
Connection via screw M10-24mm
Special functions: cleaning by wipe disinfection possible without restrictions
