By Soler & Palau

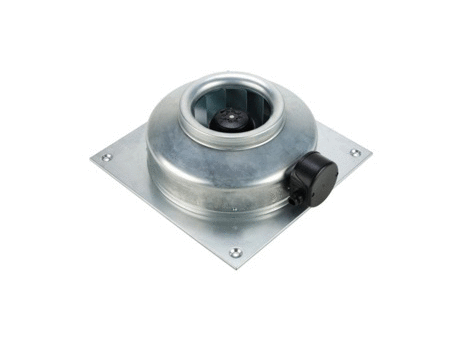

VENT-V



Manufacturer	Soler & Palau
Description	VENT/V-100L (230V 50Y60HZ) VX - 5145624200
Part Number	5145624200

CAD models

Request for quotation

Product selection

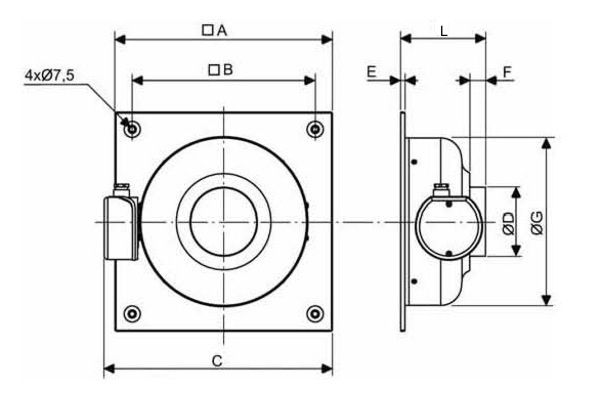

Index	Selector	Description	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	L (mm)
1	1	VENT/V-100L (230V 50Y60HZ) VX - 5145624200	630	530	662	195	12	46	480	246
2	2	VENT/V-125L (230V 50Y60HZ) VX - 5145625000	630	530	662	245	12	54	480	254
3	3	VENT/V-160L (230V 50Y60HZ) VX - 5145626800	800	700	836	314	12	56	660	260
4	4	VENT/V-200L (230V 50Y60HZ) VX - 5145627600	800	700	836	396	12	54	660	286
5	5	VENT/V-250L (230V 50Y60HZ) VX - 5145628400	800	700	836	496	12	54	660	264
6	6	VENT/V-315B (230V 50Y60HZ) VX - 5145629200	900	800	954	624	12	50	796	294
7	7	VENT/V-315L (230V 50Y60HZ) VX - 5145630000	900	800	954	624	12	50	796	294
