By Soler & Palau

TDM



Manufacturer	Soler & Palau

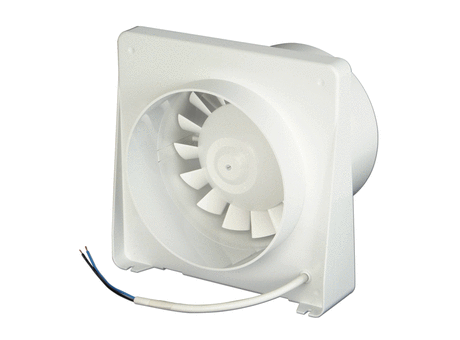

Description	TDM-300 (230V 50) RE - 5210226600
Part Number	5210226600

CAD models

Request for quotation

Product selection

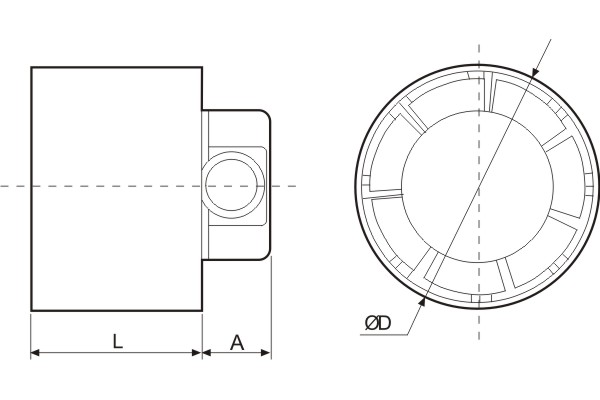

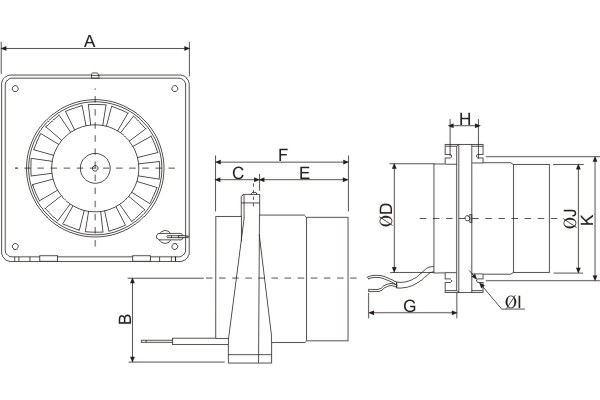

Index	Selector	Description	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	H (mm)	I (mm)	J (mm)	K (mm)	L (mm)
1	1	TDM-300 (230V 50) RE - 5210226600	200	100	30	148	104	154	250	38	4	148	168
2	2	TDM-100 (230V 50) RE - 5211502900	27			99								67,5
3	3	TDM-200 (230V 50) RE - 5211506000	27			118								78
4	4	TDM-100 (220V 60) BRA RZ - 5211998000	27			99								67,5
5	5	TDM-100 (127V 60) BRA RZ - 5211998100	27			99								67,5
6	6	TDM-200 (220V 60) BRA RZ - 5211998200	27			118								78
7	7	TDM-200 (127V 60) BRA RZ - 5211998300	27			118								78
