CGT.

CAD models

Product selection

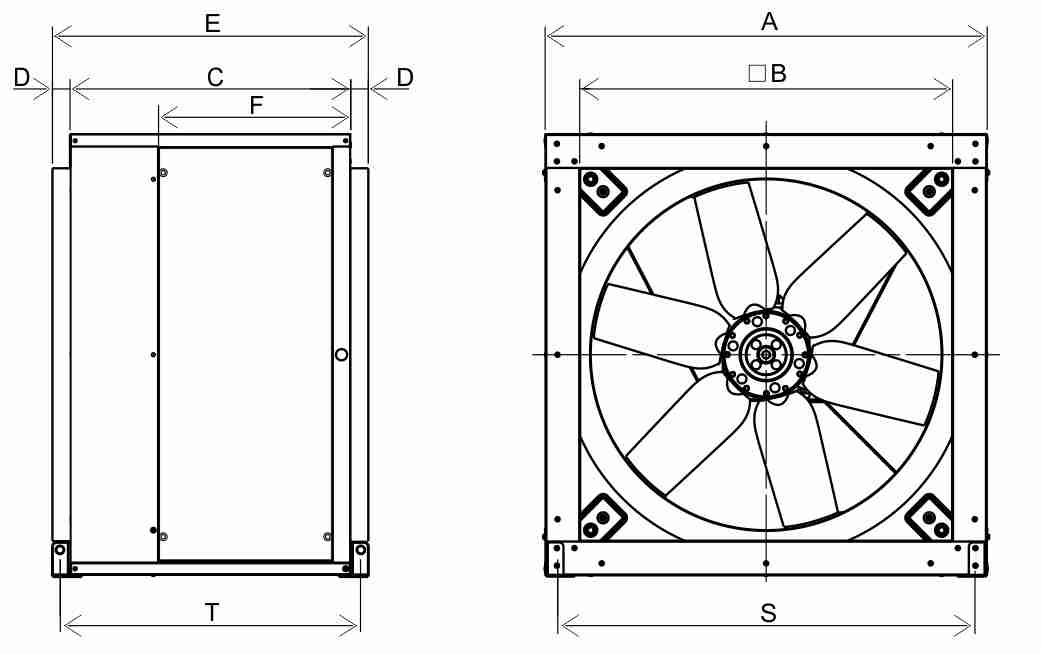

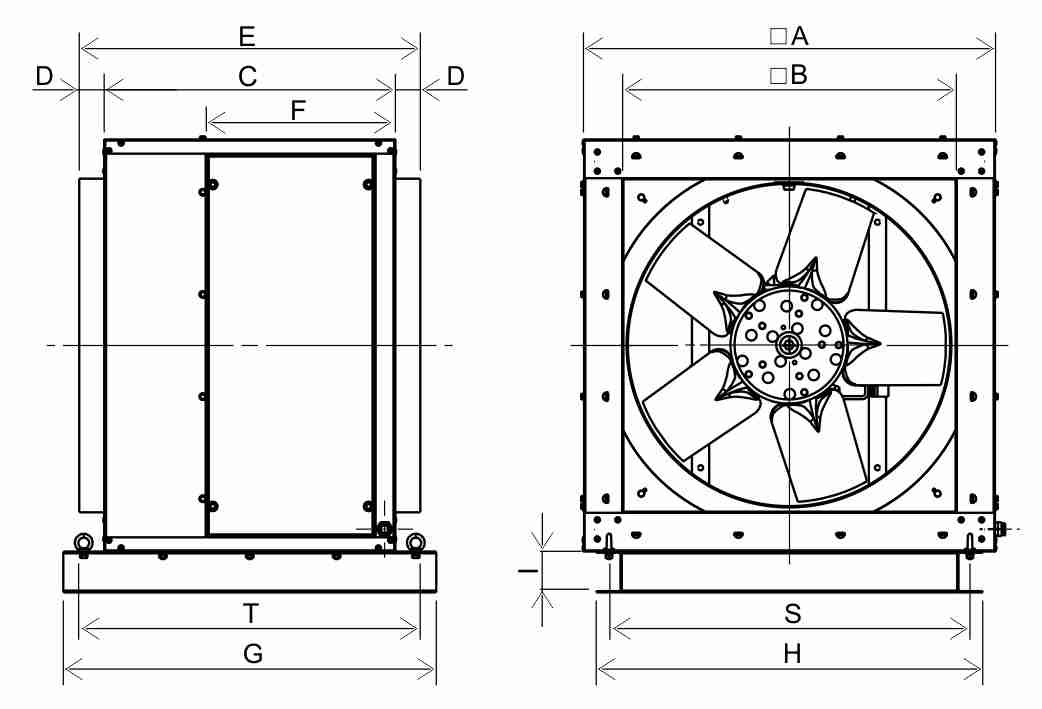

Index	Selector	Description	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	H (mm)	S (mm)	T (mm)
1	1	CGT-400	509	423	440	40	520	304			476.5	468
2	2	CGT-450	567.6	473	483	40	563	317			535.1	511
3	3	CGT-500	638	523	525	40	605	331			594.5	561
4	4	CGT-560	718.6	583	570	40	650	370			675	606
5	5	CGT-630	808	653	570	40	650	370			754.5	616
6	6	CGT-710	907.6	750	640	40	720	438			854.1	686
7	7	CGT-800	1007.6	850	640	40	720	438			954.1	686
8	8	CGT-900	1126.5	950	700	50	800	503	860	1076.5	1026.5	780
9	9	CGT-1000	1256.5	1055	700	50	800	503	860	1206.5	1156.5	780
10	10	CGT-1250	1476.5	1275	900	50	1000	310	1060	1426.5	1376.5	980
