CACB-N ECOWATT

CAD models

Product selection

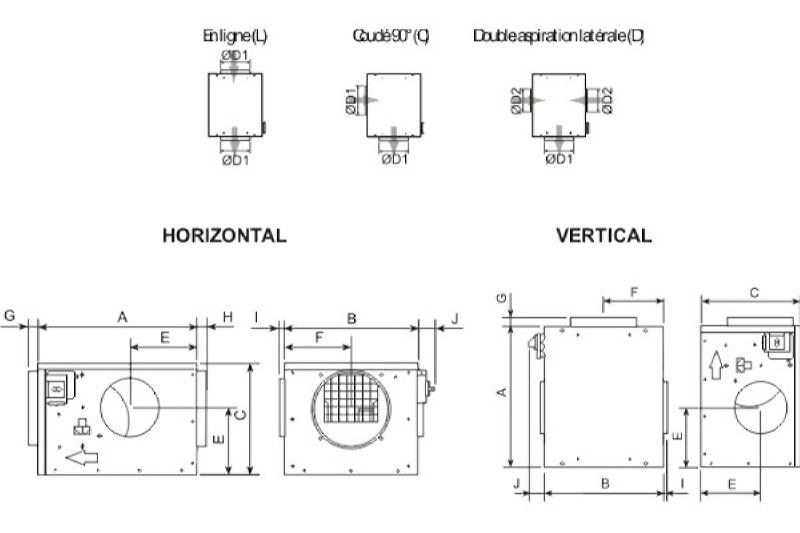

Index	Selector	Part Number	Description	A	B	C	D1	D2	E	F	G	H	I	J
1	1	5209186200	CACB-N ECOWATT 005-1 - 5209186200	550	504	300	200	160	130	148	58	53	32	132
2	5	5209188000	CACB-N ECOWATT 005-1 ISO - 5209188000	550	504	300	200	160	130	148	58	53	32	132
3	6	5209186300	CACB-N ECOWATT 005-2 - 5209186300	550	504	300	200	160	130	148	58	53	32	132
4	7	5209188100	CACB-N ECOWATT 005-2 ISO - 5209188100	550	504	300	200	160	130	148	58	53	32	132
5	8	5209186400	CACB-N ECOWATT 005-L - 5209186400	550	504	300	200	160	130	148	58	53	32	132
6	9	5209188200	CACB-N ECOWATT 005-L ISO - 5209188200	550	504	300	200	160	130	148	58	53	32	132
7	10	5209186500	CACB-N ECOWATT 008-1 - 5209186500	600	504	400	250	200	185	181	58	53	32	132
8	11	5209188300	CACB-N ECOWATT 008-1 ISO - 5209188300	600	504	400	250	200	185	181	58	53	32	132
9	12	5209186600	CACB-N ECOWATT 008-2 - 5209186600	600	504	400	250	200	185	181	58	53	32	132
10	2	5209188400	CACB-N ECOWATT 008-2 ISO - 5209188400	600	504	400	250	200	185	181	58	53	32	132
11	3	5209186700	CACB-N ECOWATT 008-L - 5209186700	600	504	400	250	200	185	181	58	53	32	132
12	4	5209188500	CACB-N ECOWATT 008-L ISO - 5209188500	600	504	400	250	200	185	181	58	53	32	132
