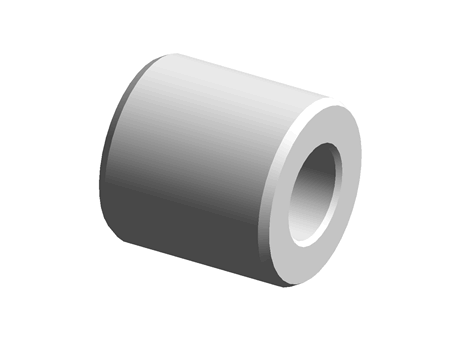

Straight bushings PSM

Manufacturer	SKF
Description	Straight bushings PSM, Bore Ø 2 mm, Outside Ø 4 mm
Part number	PSM 020404 A51
Mass	0.001 kg

CAD models

Request for quotation

Product selection

Index	Selector	Part number	Material	Bore Ø :<br />d (mm)	Outside Ø :<br />D (mm)	Width :<br />B (mm)	Tolerance shaft	Tolerance housing	Specific dynamic load factor :<br />K (N/mm²)	Specific static load factor :<br />K0 (N/mm²)	Permissible sliding velocity :<br />vmin. (m/s)	Permissible sliding velocity :<br />vmax. (m/s)	Coefficient of friction :<br />µmin.	Coefficient of friction :<br />µmax.	Mass bushing (kg)
1	1	PSM 020404 A51	Sintered bronze	2	4	4	h8	H7	10	20	0.25	5	0.05	0.1	0.001
2	2	PSM 030804 A51	Sintered bronze	3	8	4	h8	H7	10	20	0.25	5	0.05	0.1	0.001
3	3	PSM 040804 A51	Sintered bronze	4	8	4	h8	H7	10	20	0.25	5	0.05	0.1	0.001
4	4	PSM 040806 A51	Sintered bronze	4	8	6	h8	H7	10	20	0.25	5	0.05	0.1	0.001
5	5	PSM 041008 A51	Sintered bronze	4	10	8	h8	H7	10	20	0.25	5	0.05	0.1	0.003
6	6	PSM 040708 A51	Sintered bronze	4	7	8	h8	H7	10	20	0.25	5	0.05	0.1	0.001
7	7	PSM 051210 A51	Sintered bronze	5	12	10	h8	H7	10	20	0.25	5	0.05	0.1	0.006
8	8	PSM 051006 A51	Sintered bronze	5	10	6	h8	H7	10	20	0.25	5	0.05	0.1	0.002
9	9	PSM 051010 A51	Sintered bronze	5	10	10	h8	H7	10	20	0.25	5	0.05	0.1	0.004
10	10	PSM 051008 A51	Sintered bronze	5	10	8	h8	H7	10	20	0.25	5	0.05	0.1	0.003
11	11	PSM 061004 A51	Sintered bronze	6	10	4	h8	H7	10	20	0.25	5	0.05	0.1	0.001
12	12	PSM 061212 A51	Sintered bronze	6	12	12	h8	H7	10	20	0.25	5	0.05	0.1	0.006
13	13	PSM 060910 A51	Sintered bronze	6	9	10	h8	H7	10	20	0.25	5	0.05	0.1	0.002
14	14	PSM 060904 A51	Sintered bronze	6	9	4	h8	H7	10	20	0.25	5	0.05	0.1	0.001
15	15	PSM 061412 A51	Sintered bronze	6	14	12	h8	H7	10	20	0.25	5	0.05	0.1	0.009
16	16	PSM 061206 A51	Sintered bronze	6	12	6	h8	H7	10	20	0.25	5	0.05	0.1	0.003
17	17	PSM 060906 A51	Sintered bronze	6	9	6	h8	H7	10	20	0.25	5	0.05	0.1	0.001
18	18	PSM 061006 A51	Sintered bronze	6	10	6	h8	H7	10	20	0.25	5	0.05	0.1	0.002
19	19	PSM 061010 A51	Sintered bronze	6	10	10	h8	H7	10	20	0.25	5	0.05	0.1	0.003
20	20	PSM 061208 A51	Sintered bronze	6	12	8	h8	H7	10	20	0.25	5	0.05	0.1	0.005
21	21	PSM 081408 A51	Sintered bronze	8	14	8	h8	H7	10	20	0.25	5	0.05	0.1	0.006
22	29	PSM 081212 A51	Sintered bronze	8	12	12	h8	H7	10	20	0.25	5	0.05	0.1	0.005
23	22	PSM 081206 A51	Sintered bronze	8	12	6	h8	H7	10	20	0.25	5	0.05	0.1	0.002
24	30	PSM 081108 A51	Sintered bronze	8	11	8	h8	H7	10	20	0.25	5	0.05	0.1	0.002
25	31	PSM 081106 A51	Sintered bronze	8	11	6	h8	H7	10	20	0.25	5	0.05	0.1	0.002
26	32	PSM 081412 A51	Sintered bronze	8	14	12	h8	H7	10	20	0.25	5	0.05	0.1	0.008
27	23	PSM 081208 A51	Sintered bronze	8	12	8	h8	H7	10	20	0.25	5	0.05	0.1	0.003
28	24	PSM 081416 A51	Sintered bronze	8	14	16	h8	H7	10	20	0.25	5	0.05	0.1	0.011
29	25	PSM 081816 A51	Sintered bronze	8	18	16	h8	H7	10	20	0.25	5	0.05	0.1	0.02
30	33	PSM 081112 A51	Sintered bronze	8	11	12	h8	H7	10	20	0.25	5	0.05	0.1	0.003
31	26	PSM 101616 A51	Sintered bronze	10	16	16	h8	H7	10	20	0.25	5	0.05	0.1	0.013
32	34	PSM 102220 A51	Sintered bronze	10	22	20	h8	H7	10	20	0.25	5	0.05	0.1	0.037
33	27	PSM 101610 A51	Sintered bronze	10	16	10	h8	H7	10	20	0.25	5	0.05	0.1	0.008
34	28	PSM 101408 A51	Sintered bronze	10	14	8	h8	H7	10	20	0.25	5	0.05	0.1	0.004
35	35	PSM 101620 A51	Sintered bronze	10	16	20	h8	H7	10	20	0.25	5	0.05	0.1	0.016
36	36	PSM 101608 A51	Sintered bronze	10	16	8	h8	H7	10	20	0.25	5	0.05	0.1	0.006
37	45	PSM 101410 A51	Sintered bronze	10	14	10	h8	H7	10	20	0.25	5	0.05	0.1	0.005
38	37	PSM 101416 A51	Sintered bronze	10	14	16	h8	H7	10	20	0.25	5	0.05	0.1	0.008
39	38	PSM 121608 A51	Sintered bronze	12	16	8	h8	H7	10	20	0.25	5	0.05	0.1	0.005
40	39	PSM 121816 A51	Sintered bronze	12	18	16	h8	H7	10	20	0.25	5	0.05	0.1	0.015
41	40	PSM 121820 A51	Sintered bronze	12	18	20	h8	H7	10	20	0.25	5	0.05	0.1	0.019
42	41	PSM 122525 A51	Sintered bronze	12	25	25	h8	H7	10	20	0.25	5	0.05	0.1	0.058
43	42	PSM 121612 A51	Sintered bronze	12	16	12	h8	H7	10	20	0.25	5	0.05	0.1	0.007
44	46	PSM 121808 A51	Sintered bronze	12	18	8	h8	H7	10	20	0.25	5	0.05	0.1	0.007
45	47	PSM 121812 A51	Sintered bronze	12	18	12	h8	H7	10	20	0.25	5	0.05	0.1	0.011
46	43	PSM 121825 A51	Sintered bronze	12	18	25	h8	H7	10	20	0.25	5	0.05	0.1	0.023
47	44	PSM 121620 A51	Sintered bronze	12	16	20	h8	H7	10	20	0.25	5	0.05	0.1	0.012
48	48	PSM 142020 A51	Sintered bronze	14	20	20	h8	H7	10	20	0.25	5	0.05	0.1	0.021
49	49	PSM 142030 A51	Sintered bronze	14	20	30	h8	H7	10	20	0.25	5	0.05	0.1	0.032
50	55	PSM 142014 A51	Sintered bronze	14	20	14	h8	H7	10	20	0.25	5	0.05	0.1	0.015
51	56	PSM 142012 A51	Sintered bronze	14	20	12	h8	H7	10	20	0.25	5	0.05	0.1	0.013
52	57	PSM 141820 A51	Sintered bronze	14	18	20	h8	H7	10	20	0.25	5	0.05	0.1	0.013
53	58	PSM 141814 A51	Sintered bronze	14	18	14	h8	H7	10	20	0.25	5	0.05	0.1	0.009
54	50	PSM 141810 A51	Sintered bronze	14	18	10	h8	H7	10	20	0.25	5	0.05	0.1	0.006
55	59	PSM 142010 A51	Sintered bronze	14	20	10	h8	H7	10	20	0.25	5	0.05	0.1	0.01
56	60	PSM 142830 A51	Sintered bronze	14	28	30	h8	H7	10	20	0.25	5	0.05	0.1	0.086
57	61	PSM 152216 A51	Sintered bronze	15	22	16	h8	H7	10	20	0.25	5	0.05	0.1	0.022
58	62	PSM 152010 A51	Sintered bronze	15	20	10	h8	H7	10	20	0.25	5	0.05	0.1	0.009
59	51	PSM 152115 A51	Sintered bronze	15	21	15	h8	H7	10	20	0.25	5	0.05	0.1	0.017
60	52	PSM 152025 A51	Sintered bronze	15	20	25	h8	H7	10	20	0.25	5	0.05	0.1	0.021
61	53	PSM 151915 A51	Sintered bronze	15	19	15	h8	H7	10	20	0.25	5	0.05	0.1	0.01
62	54	PSM 152220 A51	Sintered bronze	15	22	20	h8	H7	10	20	0.25	5	0.05	0.1	0.026
63	63	PSM 151925 A51	Sintered bronze	15	19	25	h8	H7	10	20	0.25	5	0.05	0.1	0.017
64	64	PSM 152030 A51	Sintered bronze	15	20	30	h8	H7	10	20	0.25	5	0.05	0.1	0.026
65	65	PSM 152230 A51	Sintered bronze	15	22	30	h8	H7	10	20	0.25	5	0.05	0.1	0.041
66	66	PSM 152110 A51	Sintered bronze	15	21	10	h8	H7	10	20	0.25	5	0.05	0.1	0.011
67	73	PSM 152020 A51	Sintered bronze	15	20	20	h8	H7	10	20	0.25	5	0.05	0.1	0.017
68	67	PSM 153030 A51	Sintered bronze	15	30	30	h8	H7	10	20	0.25	5	0.05	0.1	0.098
69	68	PSM 152125 A51	Sintered bronze	15	21	25	h8	H7	10	20	0.25	5	0.05	0.1	0.028
70	69	PSM 152015 A51	Sintered bronze	15	20	15	h8	H7	10	20	0.25	5	0.05	0.1	0.013
71	74	PSM 151910 A51	Sintered bronze	15	19	10	h8	H7	10	20	0.25	5	0.05	0.1	0.007
72	70	PSM 162225 A51	Sintered bronze	16	22	25	h8	H7	10	20	0.25	5	0.05	0.1	0.03
73	71	PSM 162016 A51	Sintered bronze	16	20	16	h8	H7	10	20	0.25	5	0.05	0.1	0.012
74	75	PSM 163230 A51	Sintered bronze	16	32	30	h8	H7	10	20	0.25	5	0.05	0.1	0.112
75	76	PSM 162220 A51	Sintered bronze	16	22	20	h8	H7	10	20	0.25	5	0.05	0.1	0.024
76	72	PSM 162025 A51	Sintered bronze	16	20	25	h8	H7	10	20	0.25	5	0.05	0.1	0.018
77	77	PSM 162212 A51	Sintered bronze	16	22	12	h8	H7	10	20	0.25	5	0.05	0.1	0.013
78	78	PSM 162230 A51	Sintered bronze	16	22	30	h8	H7	10	20	0.25	5	0.05	0.1	0.036
79	79	PSM 162216 A51	Sintered bronze	16	22	16	h8	H7	10	20	0.25	5	0.05	0.1	0.019
80	80	PSM 162012 A51	Sintered bronze	16	20	12	h8	H7	10	20	0.25	5	0.05	0.1	0.009
81	88	PSM 182516 A51	Sintered bronze	18	25	16	h8	H7	10	20	0.25	5	0.05	0.1	0.025
82	89	PSM 182520 A51	Sintered bronze	18	25	20	h8	H7	10	20	0.25	5	0.05	0.1	0.032
83	81	PSM 182418 A51	Sintered bronze	18	24	18	h8	H7	10	20	0.25	5	0.05	0.1	0.024
84	82	PSM 182212 A51	Sintered bronze	18	22	12	h8	H7	10	20	0.25	5	0.05	0.1	0.009
85	90	PSM 182430 A51	Sintered bronze	18	24	30	h8	H7	10	20	0.25	5	0.05	0.1	0.04
86	91	PSM 182530 A51	Sintered bronze	18	25	30	h8	H7	10	20	0.25	5	0.05	0.1	0.048
87	83	PSM 182218 A51	Sintered bronze	18	22	18	h8	H7	10	20	0.25	5	0.05	0.1	0.014
88	92	PSM 182412 A51	Sintered bronze	18	24	12	h8	H7	10	20	0.25	5	0.05	0.1	0.015
89	84	PSM 183530 A51	Sintered bronze	18	35	30	h8	H7	10	20	0.25	5	0.05	0.1	0.131
90	85	PSM 182230 A51	Sintered bronze	18	22	30	h8	H7	10	20	0.25	5	0.05	0.1	0.023
91	86	PSM 202830 A51	Sintered bronze	20	28	30	h8	H7	10	20	0.25	5	0.05	0.1	0.061
92	87	PSM 202530 A51	Sintered bronze	20	25	30	h8	H7	10	20	0.25	5	0.05	0.1	0.035
93	93	PSM 202515 A51	Sintered bronze	20	25	15	h8	H7	10	20	0.25	5	0.05	0.1	0.017
94	94	PSM 202840 A51	Sintered bronze	20	28	40	h8	H7	10	20	0.25	5	0.05	0.1	0.081
95	95	PSM 202525 A51	Sintered bronze	20	25	25	h8	H7	10	20	0.25	5	0.05	0.1	0.03
96	96	PSM 204040 A51	Sintered bronze	20	40	40	h8	H7	10	20	0.25	5	0.05	0.1	0.233
97	97	PSM 202625 A51	Sintered bronze	20	26	25	h8	H7	10	20	0.25	5	0.05	0.1	0.037
98	101	PSM 202630 A51	Sintered bronze	20	26	30	h8	H7	10	20	0.25	5	0.05	0.1	0.044
99	102	PSM 202520 A51	Sintered bronze	20	25	20	h8	H7	10	20	0.25	5	0.05	0.1	0.024
100	98	PSM 202620 A51	Sintered bronze	20	26	20	h8	H7	10	20	0.25	5	0.05	0.1	0.028
101	103	PSM 202615 A51	Sintered bronze	20	26	15	h8	H7	10	20	0.25	5	0.05	0.1	0.022
102	99	PSM 202820 A51	Sintered bronze	20	28	20	h8	H7	10	20	0.25	5	0.05	0.1	0.04
103	104	PSM 222715 A51	Sintered bronze	22	27	15	h8	H7	10	20	0.25	5	0.05	0.1	0.018
104	105	PSM 222720 A51	Sintered bronze	22	27	20	h8	H7	10	20	0.25	5	0.05	0.1	0.026
105	106	PSM 223230 A51	Sintered bronze	22	32	30	h8	H7	10	20	0.25	5	0.05	0.1	0.084
106	100	PSM 223220 A51	Sintered bronze	22	32	20	h8	H7	10	20	0.25	5	0.05	0.1	0.052
107	107	PSM 222725 A51	Sintered bronze	22	27	25	h8	H7	10	20	0.25	5	0.05	0.1	0.032
108	113	PSM 253025 A51	Sintered bronze	25	30	25	h8	H7	10	20	0.25	5	0.05	0.1	0.036
109	108	PSM 253030 A51	Sintered bronze	25	30	30	h8	H7	10	20	0.25	5	0.05	0.1	0.043
110	114	PSM 253535 A51	Sintered bronze	25	35	35	h8	H7	10	20	0.25	5	0.05	0.1	0.109
111	109	PSM 253232 A51	Sintered bronze	25	32	32	h8	H7	10	20	0.25	5	0.05	0.1	0.063
112	115	PSM 253230 A51	Sintered bronze	25	32	30	h8	H7	10	20	0.25	5	0.05	0.1	0.063
113	110	PSM 253235 A51	Sintered bronze	25	32	35	h8	H7	10	20	0.25	5	0.05	0.1	0.073
114	116	PSM 253020 A51	Sintered bronze	25	30	20	h8	H7	10	20	0.25	5	0.05	0.1	0.029
115	111	PSM 253225 A51	Sintered bronze	25	32	25	h8	H7	10	20	0.25	5	0.05	0.1	0.052
116	117	PSM 253220 A51	Sintered bronze	25	32	20	h8	H7	10	20	0.25	5	0.05	0.1	0.042
117	118	PSM 254535 A51	Sintered bronze	25	45	35	h8	H7	10	20	0.25	5	0.05	0.1	0.238
118	119	PSM 253525 A51	Sintered bronze	25	35	25	h8	H7	10	20	0.25	5	0.05	0.1	0.077
119	112	PSM 253550 A51	Sintered bronze	25	35	50	h8	H7	10	20	0.25	5	0.05	0.1	0.158
120	120	PSM 303530 A51	Sintered bronze	30	35	30	h8	H7	10	20	0.25	5	0.05	0.1	0.047
121	126	PSM 305060 A51	Sintered bronze	30	50	60	h8	H7	10	20	0.25	5	0.05	0.1	0.466
122	121	PSM 304045 A51	Sintered bronze	30	40	45	h8	H7	10	20	0.25	5	0.05	0.1	0.166
123	127	PSM 303840 A51	Sintered bronze	30	38	40	h8	H7	10	20	0.25	5	0.05	0.1	0.111
124	128	PSM 303825 A51	Sintered bronze	30	38	25	h8	H7	10	20	0.25	5	0.05	0.1	0.068
125	129	PSM 304030 A51	Sintered bronze	30	40	30	h8	H7	10	20	0.25	5	0.05	0.1	0.11
126	122	PSM 303830 A51	Sintered bronze	30	38	30	h8	H7	10	20	0.25	5	0.05	0.1	0.084
127	130	PSM 304060 A51	Sintered bronze	30	40	60	h8	H7	10	20	0.25	5	0.05	0.1	0.214
128	123	PSM 303525 A51	Sintered bronze	30	35	25	h8	H7	10	20	0.25	5	0.05	0.1	0.039
129	124	PSM 303520 A51	Sintered bronze	30	35	20	h8	H7	10	20	0.25	5	0.05	0.1	0.032
130	125	PSM 303820 A51	Sintered bronze	30	38	20	h8	H7	10	20	0.25	5	0.05	0.1	0.057
131	131	PSM 354550 A51	Sintered bronze	35	45	50	h8	H7	10	20	0.25	5	0.05	0.1	0.205
132	132	PSM 354125 A51	Sintered bronze	35	41	25	h8	H7	10	20	0.25	5	0.05	0.1	0.055
133	135	PSM 354535 A51	Sintered bronze	35	45	35	h8	H7	10	20	0.25	5	0.05	0.1	0.147
134	133	PSM 354135 A51	Sintered bronze	35	41	35	h8	H7	10	20	0.25	5	0.05	0.1	0.077
135	134	PSM 354570 A51	Sintered bronze	35	45	70	h8	H7	10	20	0.25	5	0.05	0.1	0.272
136	136	PSM 354140 A51	Sintered bronze	35	41	40	h8	H7	10	20	0.25	5	0.05	0.1	0.088
137	137	PSM 354540 A51	Sintered bronze	35	45	40	h8	H7	10	20	0.25	5	0.05	0.1	0.168
138	143	PSM 354525 A51	Sintered bronze	35	45	25	h8	H7	10	20	0.25	5	0.05	0.1	0.097
139	144	PSM 404650 A51	Sintered bronze	40	46	50	h8	H7	10	20	0.25	5	0.05	0.1	0.125
140	145	PSM 405030 A51	Sintered bronze	40	50	30	h8	H7	10	20	0.25	5	0.05	0.1	0.136
141	146	PSM 405060 A51	Sintered bronze	40	50	60	h8	H7	10	20	0.25	5	0.05	0.1	0.27
142	147	PSM 405050 A51	Sintered bronze	40	50	50	h8	H7	10	20	0.25	5	0.05	0.1	0.225
143	148	PSM 405040 A51	Sintered bronze	40	50	40	h8	H7	10	20	0.25	5	0.05	0.1	0.185
144	149	PSM 404630 A51	Sintered bronze	40	46	30	h8	H7	10	20	0.25	5	0.05	0.1	0.075
145	150	PSM 404640 A51	Sintered bronze	40	46	40	h8	H7	10	20	0.25	5	0.05	0.1	0.1
146	138	PSM 455555 A51	Sintered bronze	45	55	55	h8	H7	10	20	0.25	5	0.05	0.1	0.267
147	139	PSM 455560 A51	Sintered bronze	45	55	60	h8	H7	10	20	0.25	5	0.05	0.1	0.316
148	140	PSM 455155 A51	Sintered bronze	45	51	55	h8	H7	10	20	0.25	5	0.05	0.1	0.154
149	151	PSM 455535 A51	Sintered bronze	45	55	35	h8	H7	10	20	0.25	5	0.05	0.1	0.184
150	152	PSM 455145 A51	Sintered bronze	45	51	45	h8	H7	10	20	0.25	5	0.05	0.1	0.126
151	141	PSM 455135 A51	Sintered bronze	45	51	35	h8	H7	10	20	0.25	5	0.05	0.1	0.098
152	142	PSM 455565 A51	Sintered bronze	45	55	65	h8	H7	10	20	0.25	5	0.05	0.1	0.315
153	153	PSM 455545 A51	Sintered bronze	45	55	45	h8	H7	10	20	0.25	5	0.05	0.1	0.237
154	156	PSM 506035 A51	Sintered bronze	50	60	35	h8	H7	10	20	0.25	5	0.05	0.1	0.19
155	154	PSM 506050 A51	Sintered bronze	50	60	50	h8	H7	10	20	0.25	5	0.05	0.1	0.268
156	157	PSM 507070 A51	Sintered bronze	50	70	70	h8	H7	10	20	0.25	5	0.05	0.1	0.815
157	155	PSM 506070 A51	Sintered bronze	50	60	70	h8	H7	10	20	0.25	5	0.05	0.1	0.38
158	158	PSM 556540 A51	Sintered bronze	55	65	40	h8	H7	10	20	0.25	5	0.05	0.1	0.233
159	159	PSM 557070 A51	Sintered bronze	55	70	70	h8	H7	10	20	0.25	5	0.05	0.1	0.637
160	160	PSM 556570 A51	Sintered bronze	55	65	70	h8	H7	10	20	0.25	5	0.05	0.1	0.408
161	163	PSM 556555 A51	Sintered bronze	55	65	55	h8	H7	10	20	0.25	5	0.05	0.1	0.32
162	161	PSM 607050 A51	Sintered bronze	60	70	50	h8	H7	10	20	0.25	5	0.05	0.1	0.315
163	164	PSM 607560 A51	Sintered bronze	60	75	60	h8	H7	10	20	0.25	5	0.05	0.1	0.589
164	165	PSM 607270 A51	Sintered bronze	60	72	70	h8	H7	10	20	0.25	5	0.05	0.1	0.538
165	162	PSM 607260 A51	Sintered bronze	60	72	60	h8	H7	10	20	0.25	5	0.05	0.1	0.384
166	166	PSM 606860 A51	Sintered bronze	60	68	60	h8	H7	10	20	0.25	5	0.05	0.1	0.298
167	167	PSM 607590 A51	Sintered bronze	60	75	90	h8	H7	10	20	0.25	5	0.05	0.1	0.884
168	168	PSM 606870 A51	Sintered bronze	60	68	70	h8	H7	10	20	0.25	5	0.05	0.1	0.348
169	169	PSM 607060 A51	Sintered bronze	60	70	60	h8	H7	10	20	0.25	5	0.05	0.1	0.378
170	170	PSM 607250 A51	Sintered bronze	60	72	50	h8	H7	10	20	0.25	5	0.05	0.1	0.384
171	171	PSM 606850 A51	Sintered bronze	60	68	50	h8	H7	10	20	0.25	5	0.05	0.1	0.248
172	173	PSM 658060 A51	Sintered bronze	65	80	60	h8	H7	10	20	0.25	5	0.05	0.1	0.633
173	172	PSM 657560 A51	Sintered bronze	65	75	60	h8	H7	10	20	0.25	5	0.05	0.1	0.408
174	174	PSM 708590 A51	Sintered bronze	70	85	90	h8	H7	10	20	0.25	5	0.05	0.1	1.015
175	176	PSM 708060 A51	Sintered bronze	70	80	60	h8	H7	10	20	0.25	5	0.05	0.1	0.437
176	175	PSM 708560 A51	Sintered bronze	70	85	60	h8	H7	10	20	0.25	5	0.05	0.1	0.677
177	180	PSM 7590100 A51	Sintered bronze	75	90	100	h8	H7	10	20	0.25	5	0.05	0.1	1.201
178	181	PSM 75100100 A51	Sintered bronze	75	100	100	h8	H7	10	20	0.25	5	0.05	0.1	2.122
179	177	PSM 759070 A51	Sintered bronze	75	90	70	h8	H7	10	20	0.25	5	0.05	0.1	0.841
180	182	PSM 758570 A51	Sintered bronze	75	85	70	h8	H7	10	20	0.25	5	0.05	0.1	0.543
181	183	PSM 7585100 A51	Sintered bronze	75	85	100	h8	H7	10	20	0.25	5	0.05	0.1	0.776
182	178	PSM 809070 A51	Sintered bronze	80	90	70	h8	H7	10	20	0.25	5	0.05	0.1	0.577
183	179	PSM 80105100 A51	Sintered bronze	80	105	100	h8	H7	10	20	0.25	5	0.05	0.1	2.244
184	184	PSM 8095100 A51	Sintered bronze	80	95	100	h8	H7	10	20	0.25	5	0.05	0.1	1.274
185	186	PSM 809580 A51	Sintered bronze	80	95	80	h8	H7	10	20	0.25	5	0.05	0.1	1.04
186	187	PSM 809570 A51	Sintered bronze	80	95	70	h8	H7	10	20	0.25	5	0.05	0.1	0.891
187	185	PSM 85100100 A51	Sintered bronze	85	100	100	h8	H7	10	20	0.25	5	0.05	0.1	1.346
188	190	PSM 8595100 A51	Sintered bronze	85	95	100	h8	H7	10	20	0.25	5	0.05	0.1	0.9
189	188	PSM 9011080 A51	Sintered bronze	90	110	80	h8	H7	10	20	0.25	5	0.05	0.1	1.552
190	189	PSM 9010580 A51	Sintered bronze	90	105	80	h8	H7	10	20	0.25	5	0.05	0.1	1.16
191	191	PSM 10012080 A51	Sintered bronze	100	120	80	h8	H7	10	20	0.25	5	0.05	0.1	1.708

Contact the supplier

SKF

For a world of sustainable rotation

AB SKF

AB SKF
Sven Wingquists Gata 2
SE-415 50 Gothenburg
Sweden
www.skf.com
