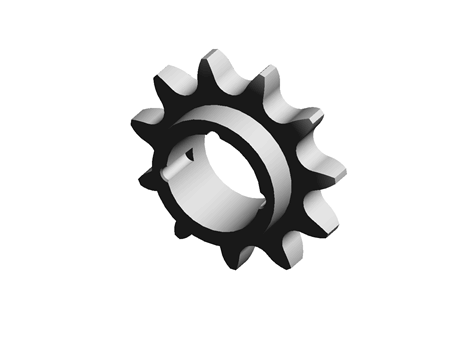

Metric sprockets, simplex ISO 12B-1 with 19.05 mm pitch, taper bushed

Manufacturer	SKF
Description	Metric sprockets, simplex ISO 12B-1 with 19.05 mm pitch, taper bushed
Part number	PHS 12B-1TBH11

CAD models

Request for quotation

Product selection

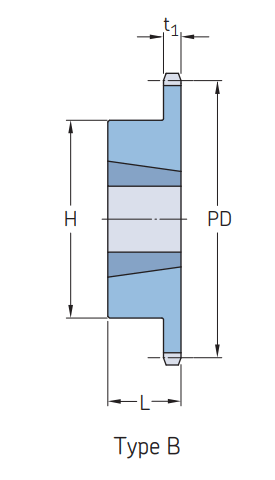

Index	Selector	Designation	Pitch (mm)	Number of teeth	Pitch diameter PD (mm)	Type	Bushing number	Bore Min. (mm)	Bore Max. (mm)	Hub L (mm)	Hub H (mm)	Plate thickness t1 (mm)	Mass Rim (kg)	Mass Bushing (kg)
1	1	PHS 12B-1TBH11	19.05	11	67.61	B	1008	9	25.4	22	46	11.1	0.22	0.09
2	2	PHS 12B-1TBH12	19.05	12	73.61	B	1008	9	25.4	22	49.2	11.1	0.3	0.09
3	3	PHS 12B-1TBH13	19.05	13	79.59	B	1210	11	31.8	25	60	11.1	0.38	0.21
4	4	PHS 12B-1TBH14	19.05	14	85.61	B	1610	14	41.3	25	70	11.1	0.46	0.31
5	5	PHS 12B-1TBH15	19.05	15	91.63	B	1610	14	41.3	25	70	11.1	0.48	0.31
6	6	PHS 12B-1TBH16	19.05	16	97.65	B	1610	14	41.3	25	75	11.1	0.6	0.31
7	7	PHS 12B-1TBH17	19.05	17	103.67	B	1610	14	41.3	25	76	11.1	0.7	0.31
8	8	PHS 12B-1TBH18	19.05	18	109.71	B	2012	14	50.8	32	90	11.1	0.86	0.59
9	9	PHS 12B-1TBH19	19.05	19	115.75	B	2012	14	50.8	32	90	11.1	0.98	0.59
10	10	PHS 12B-1TBH20	19.05	20	121.78	B	2012	14	50.8	32	95	11.1	1.25	0.59
11	11	PHS 12B-1TBH21	19.05	21	127.82	B	2517	16	63.5	45	102	11.1	1.28	1.3
12	12	PHS 12B-1TBH22	19.05	22	133.86	B	2517	16	63.5	45	102	11.1	1.37	1.3
13	13	PHS 12B-1TBH23	19.05	23	139.9	B	2517	16	63.5	45	108	11.1	1.75	1.3
14	14	PHS 12B-1TBH24	19.05	24	145.94	B	2517	16	63.5	45	108	11.1	1.85	1.3
15	15	PHS 12B-1TBH25	19.05	25	152	B	2517	16	63.5	45	108	11.1	1.95	1.3
16	16	PHS 12B-1TB26	19.05	26	158.04	B	2517	16	63.5	45	108	11.1	2.09	1.3
17	17	PHS 12B-1TB27	19.05	27	164.09	B	2517	16	63.5	45	108	11.1	2.22	1.3
18	18	PHS 12B-1TB28	19.05	28	170.13	B	2517	16	63.5	45	108	11.1	2.36	1.3
19	19	PHS 12B-1TB29	19.05	29	176.19	B	2517	16	63.5	45	108	11.1	2.75	1.3
20	20	PHS 12B-1TB30	19.05	30	182.25	B	2517	16	63.5	45	108	11.1	2.89	1.3
21	21	PHS 12B-1TB32	19.05	32	194.36	B	2517	16	63.5	45	108	11.1	3.59	1.3
22	22	PHS 12B-1TB35	19.05	35	212.52	B	2517	16	63.5	45	108	11.1	4.41	1.3
23	23	PHS 12B-1TB36	19.05	36	218.58	B	2517	16	63.5	45	108	11.1	4.68	1.3
24	24	PHS 12B-1TB38	19.05	38	230.69	B	2517	16	63.5	45	108	11.1	4.6	1.3
25	25	PHS 12B-1TB40	19.05	40	242.81	B	2517	16	63.5	45	108	11.1	5.78	1.3
26	26	PHS 12B-1TB42	19.05	42	254.93	B	2517	16	63.5	45	108	11.1	6.33	1.3
27	27	PHS 12B-1TB45	19.05	45	273.1	B	2517	16	63.5	45	108	11.1	5.7	1.3
28	28	PHS 12B-1TB48	19.05	48	291.27	B	2517	16	63.5	45	108	11.1	7.97	1.3
29	29	PHS 12B-1TB54	19.05	54	327.64	B	2517	16	63.5	45	108	11.1	9.61	1.3
30	30	PHS 12B-1TB57	19.05	57	345.81	B	2517	16	63.5	45	108	11.1	6.49	1.3
31	31	PHS 12B-1TB60	19.05	60	363.99	B	2517	16	63.5	45	108	11.1	11.25	1.3
32	32	PHS 12B-1TB68	19.05	68	412.49	B	2517	16	63.5	45	108	11.1	13.44	1.3
33	33	PHS 12B-1TB70	19.05	70	424.6	B	2517	16	63.5	45	108	11.1	13.99	1.3
34	34	PHS 12B-1TB72	19.05	72	436.74	B	2517	16	63.5	45	108	11.1	14.54	1.3
35	35	PHS 12B-1TB76	19.05	76	460.99	B	2517	16	63.5	45	108	11.1	11.2	1.3
36	36	PHS 12B-1TB84	19.05	84	509.48	B	2517	16	63.5	45	108	11.1	17.82	1.3
37	37	PHS 12B-1TB95	19.05	95	576.17	B	2517	16	63.5	45	108	11.1	17.64	1.3
38	38	PHS 12B-1TB96	19.05	96	582.23	B	2517	16	63.5	45	108	11.1	21.11	1.3
39	39	PHS 12B-1TB114	19.05	114	691.36	B	2517	16	63.5	64	108	11.1	26.04	1.3

Product Description

All SKF sprockets are manufactured according to ISO606 & ASME B29.100
standard. The sprockets are made from steel material C-45 and premium
carbon steel no. 20 on hub material if welded. For some special sprockets
gray cast iron HT250 or cast iron 250 material is used.
Sprockets 25T and below are hardened as standard (typically 35-40 HRC).
This is only valid for sprocket teeths manufactured with steel material
C-45. Surface treatment such as black oxide and zinc plating can be offered
upon request.
Tolerances are machined according to DIN 8196.
All sprockets are completely deburred and protected with rustproof oil.
