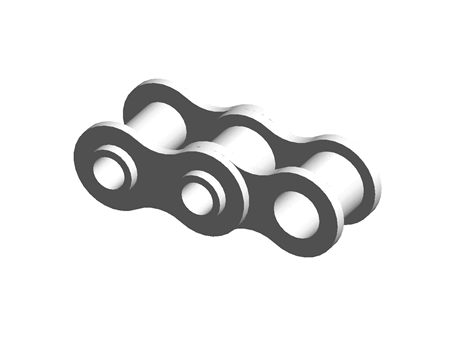

Hollow pin chains

Manufacturer	SKF
Description	Hollow pin chains
Part number	PHC 08B-1HPX5MTR

CAD models

Request for quotation

Product selection

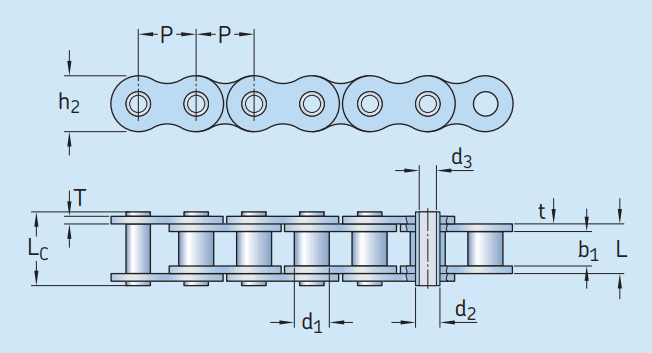

Index	Selector	Designation	Pitch P (mm)	Roller diameter d1 Max. (mm)	Width between inner plates b1 Min. (mm)	Pin diameter d2 Max. (mm)	Pin diameter d3 Max. (mm)	Pin length L Max. (mm)	Pin length Lc Max. (mm)	Inner plate height h2 Max. (mm)	Plate thickness t Max. (mm)	Plate thickness T Max. (mm)	Ultimate tensile strength Q Min. (kN)	Average tensile strength Q0 (kN)	Mass per meter (kg/m)
1	1	PHC 08B-1HP	12.7	8.51	7.75	6.55	4.5	16.4	17.6	11.8	1.6	1.3	11.1/2523	12.1	0.56
2	2	PHC 10B-1HP	15.875	10.16	9.65	7.02	5.13	19.5	20.5	14.7	1.7	1.7	10.0/2272	11.5	0.86
3	3	PHC 12B-1HP	19.05	12.07	11.68	8.09	6	22.7	23.9	16.1	1.85	1.85	14.0/3180	16	0.82
4	4	PHC 16B-1HP	25.4	15.88	17.02	11.5	8.2	35.3	37	23.2	4	3.1	49.0/11136	52.2	2.26
5	5	PHC 40-1HP	12.7	7.95	7.85	5.63	4	16.5	17.6	12	1.5	1.5	11.0/2500	12.2	0.54
6	6	PHC 50-1HP	15.875	10.16	9.4	7.03	5.13	20.7	21.9	15.09	2.03	2.03	20.0/4545	22.6	0.91
7	7	PHC 60-1HP	19.05	11.91	12.7	8.31	6	25.8	26.8	18	2.42	2.42	24.0/5455	26.9	1.29
8	8	PHC 80-1HP	25.4	15.88	15.75	11.4	8.05	32.5	33.8	24	3.25	3.25	50.0/11364	52	2.26
9	9	PHC A2080HP	50.8	15.88	15.75	11.4	8.05	32.4	33.8	24	3.25	3.25	42.3/9615	46.1	1.6

Length

Product Description

Each chain is delivered with one connecting link.
