Conveyor Chains Engineering bush series

Manufacturer	SKF

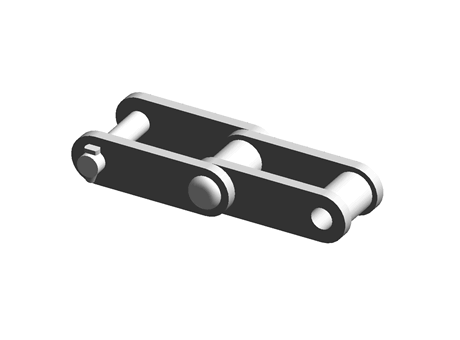

Description	Engineering bush series chain S188, pitch 66.27 mm
Part number	PHC S188X5MTR

CAD models

Request for quotation

Product selection

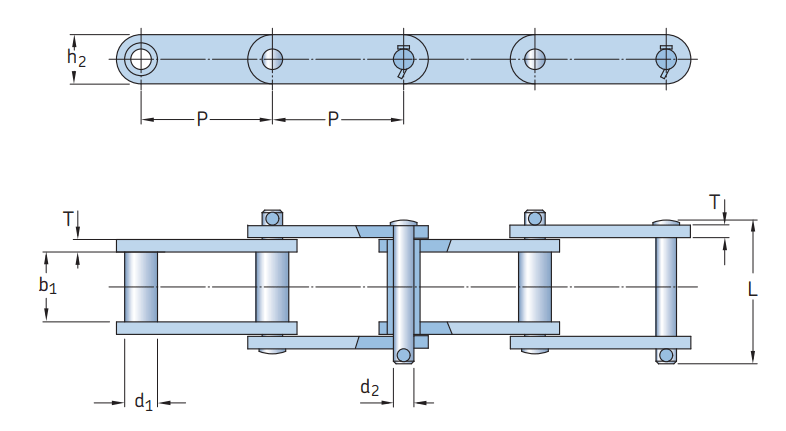

Index	Selector	Designation	Pitch P (mm)	Roller diameter d1 Max. (mm)	Width between inner plates b1 Min. (mm)	Pin diameter d2 Max. (mm)	Pin length L Max. (mm)	Plate height h2 Max. (mm)	Plate thickness T Max. (mm)	Ultimate tensile strength Q Min. (kN)	Average tensile strength Q0 Min. (kN)	Mass per metre (kg/m)
1	1	PHC S188…	66.27	22.4	26.9	12.7	68.6	28.4	6.4	102	112.2	5.6
2	2	PHC S131…	78.11	32	33.5	15.88	90.5	38.1	9.7	160	176	11.6
3	3	PHC S102B…	101.6	25.4	54.1	15.88	111.3	38.1	9.7	160	176	10.4
4	4	PHC S102.5…	102.36	34.93	57.15	19.05	115	44.45	9.5	214	235.4	14.09
5	5	PHC S111…	120.9	36.6	66.8	19.05	131.2	50.8	9.7	214	235.4	15.9
6	6	PHC S111F1…	120.9	36.51	66.68	19.05	125	50.8	9.5	214	235.4	15.46
7	7	PHC S110…	152.4	32	54.1	15.88	111.3	38.1	9.7	160	176	9.8
8	8	PHC S856…	152.4	44.4	76.2	25.4	154.9	63.5	12.7	365	401.5	25
9	9	PHC S857…	152.4	44.4	76.2	25.4	154.9	82.6	12.7	432	475.2	32
10	10	PHC S859…	152.4	60.4	95.3	31.75	188.5	101.6	16	690	759	55.9
11	11	PHC S110F1…	152.4	31.75	53.48	15.88	111	44.45	9.5	160	176	10.5
12	12	PHC S150…	153.67	44.7	84.3	25.4	164.6	63.5	12.7	378	416	25.7
13	13	PHC S864…	177.8	60.4	95.3	31.75	188.5	101.6	16	690	759	51.8
