Straight Rod Locating Pin - Positive Tolerance - One End Threaded Type(Tolerance m6) - EASTM

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Straight Rod Locating Pin - Positive Tolerance - One End Threaded Type(Tolerance m6) - EASTM5-10
Part number	EASTM5-10

CAD models

Product selection

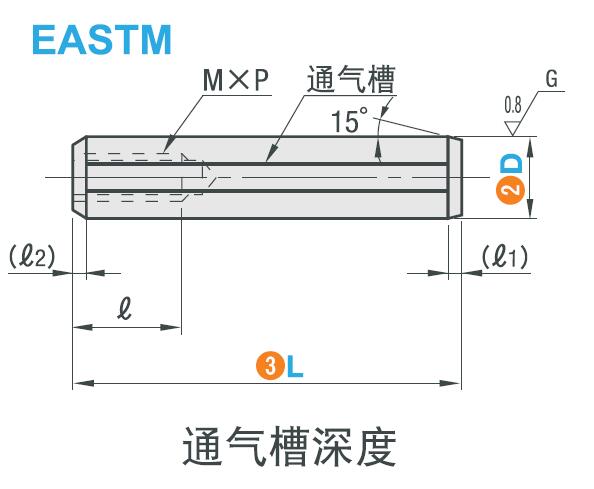

Index	Selector	D	l1	l2	MxP	l
1	1	5	1.5	0.3	M3x0.5	6
2	2	6	2	0.3	M4x0.7	8
3	3	8	2	0.5	M5x0.8	8
4	4	10	2.5	0.5	M6x1	10
5	5	12	2.5	1	M6x1	10
6	6	13	2.5	1	M8x1.25	15
7	7	16	3	1.5	M8x1.25	15
8	8	20	3	1.5	M10x1.5	18
