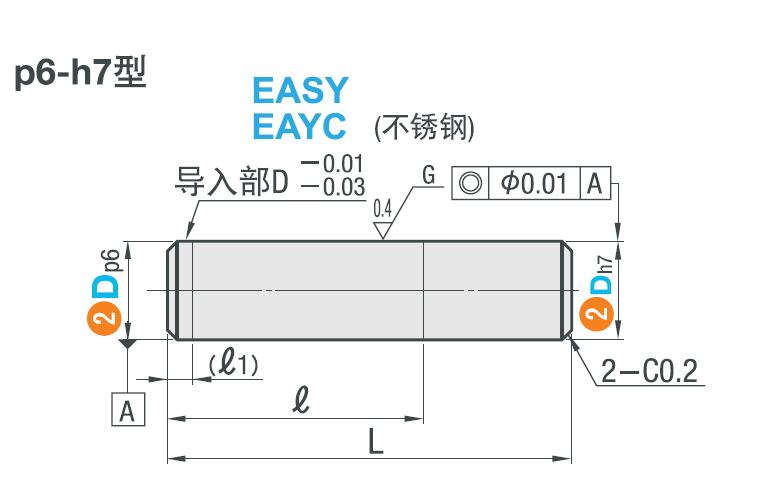

Step Parallel Pin p6-h7 Type EASY/EAYC

Manufacturer	Shenzhen Shiruida Automation Equipment Co.,Ltd.
Description	Step Parallel Pin p6-h7 Type EASY3-803
Part number	EASY3-803

CAD models

Product selection

Index	Selector	Code	D	No.	L	l	l1
1	1	3	3	803	8	3	1
2	2	3	3	8	8	4	1
3	3	3	3	805	8	5	1
4	4	3	3	1003	10	3	1
5	5	3	3	1005	10	5	1
6	6	3	3	10	10	7	1
7	7	3	3	12	12	6	1
8	8	3	3	15	15	10	1
9	9	3	3	20	20	13	1
10	10	4	4	803	8	3	1.5
11	11	4	4	8	8	4	1.5
12	12	4	4	805	8	5	1.5
13	13	4	4	1005	10	5	1.5
14	14	4	4	10	10	7	1.5
15	15	4	4	1008	10	8	1.5
16	16	4	4	1205	12	5	1.5
17	17	4	4	12	12	6	1.5
18	18	4	4	1208	12	8	1.5
19	19	4	4	1508	15	8	1.5
20	20	4	4	15	15	10	1.5
21	21	4	4	1512	15	12	1.5
22	49	4	4	20	20	13	1.5
23	22	5	5	1003	10	3	1.5
24	23	5	5	1005	10	5	1.5
25	24	5	5	10	10	7	1.5
26	25	5	5	1205	12	5	1.5
27	26	5	5	12	12	6	1.5
28	27	5	5	1208	12	8	1.5
29	28	5	5	1508	15	8	1.5
30	29	5	5	15	15	10	1.5
31	30	5	5	1512	15	12	1.5
32	50	5	5	18	18	12	1.5
33	51	5	5	20	20	13	1.5
34	31	6	6	1005	10	5	1.5
35	32	6	6	10	10	7	1.5
36	33	6	6	1008	10	8	1.5
37	34	6	6	1205	12	5	1.5
38	35	6	6	12	12	6	1.5
39	36	6	6	1208	12	8	1.5
40	37	6	6	1508	15	8	1.5
41	38	6	6	15	15	10	1.5
42	39	6	6	1512	15	12	1.5
43	40	6	6	18	18	12	1.5
44	41	6	6	20	20	13	1.5
45	42	8	8	18	18	12	2
46	43	8	8	20	20	13	2
47	44	8	8	25	25	16	2
48	52	8	8	30	30	19	2
49	45	10	10	18	18	12	2
50	46	10	10	25	25	16	2
51	47	10	10	30	30	19	2
52	48	12	12	40	40	25	2

Material
